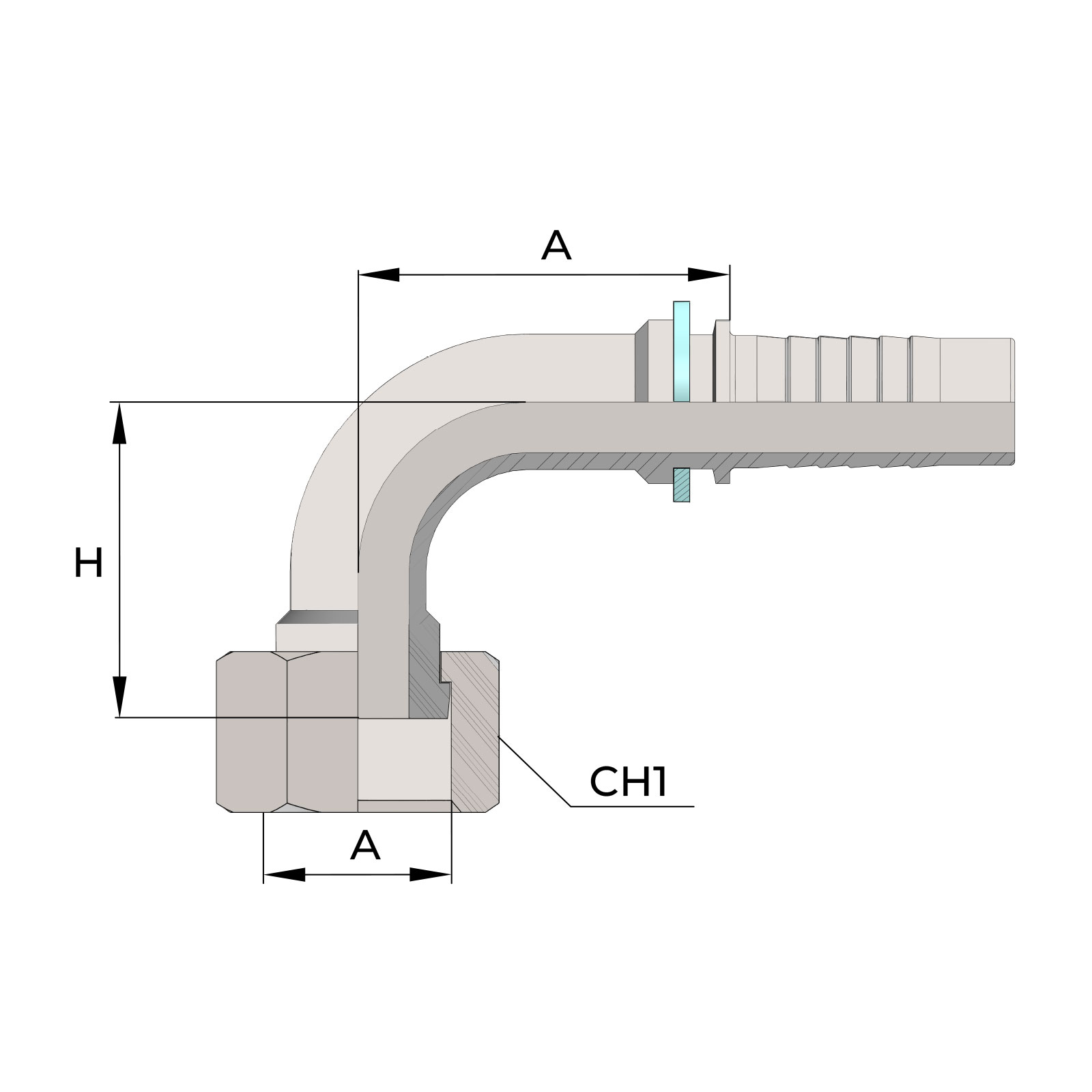

| Part Number | Thread | Hose ID | Hose ID | CH | H | cut-off=A |
|---|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | mm | |
| F4H00916014316 | 9/16"-16 | 1/4" | 4 | 19 | 12 | 40 |
| F4H01116014316 | 11/16"-16 | 1/4" | 4 | 22 | 14 | 40 |
| F4H01116516316 | 11/16"-16 | 5/16" | 5 | 22 | 15 | 46 |
| F4H01116038316 | 11/16"-16 | 3/8" | 6 | 22 | 16 | 53 |
| F4H01316038316 | 13/16"-16 | 3/8" | 6 | 24 | 17 | 53 |
| F4H01316012316 | 13/16"-16 | 1/2" | 8 | 24 | 21 | 55 |
| F4H00001012316 | 1"-14 | 1/2" | 8 | 30 | 21 | 55 |
| F4H10316012316 | 1"3/16-12 | 1/2" | 8 | 36 | 21 | 55 |
| F4H00001058316 | 1"-14 | 5/8" | 10 | 30 | 21 | 65 |
| F4H10316058316 | 1"3/16-12 | 5/8" | 10 | 36 | 21 | 65 |
| F4H00001034316 | 1"-14 | 3/4" | 12 | 30 | 23 | 76 |
| F4H10316034316 | 1"3/16-12 | 3/4" | 12 | 36 | 23 | 76 |
| F4H10716034316 | 1"7/16-12 | 3/4" | 12 | 41 | 23 | 76 |
| F4H10716001316 | 1"7/16-12 | 1" | 16 | 41 | 27 | 85 |
| F4H11116114316 | 1"11/16-12 | 1"1/4 | 20 | 50 | 42 | 103 |
| F4H00002112316 | 2"-12 | 1"1/2 | 24 | 60 | 44 | 120 |
