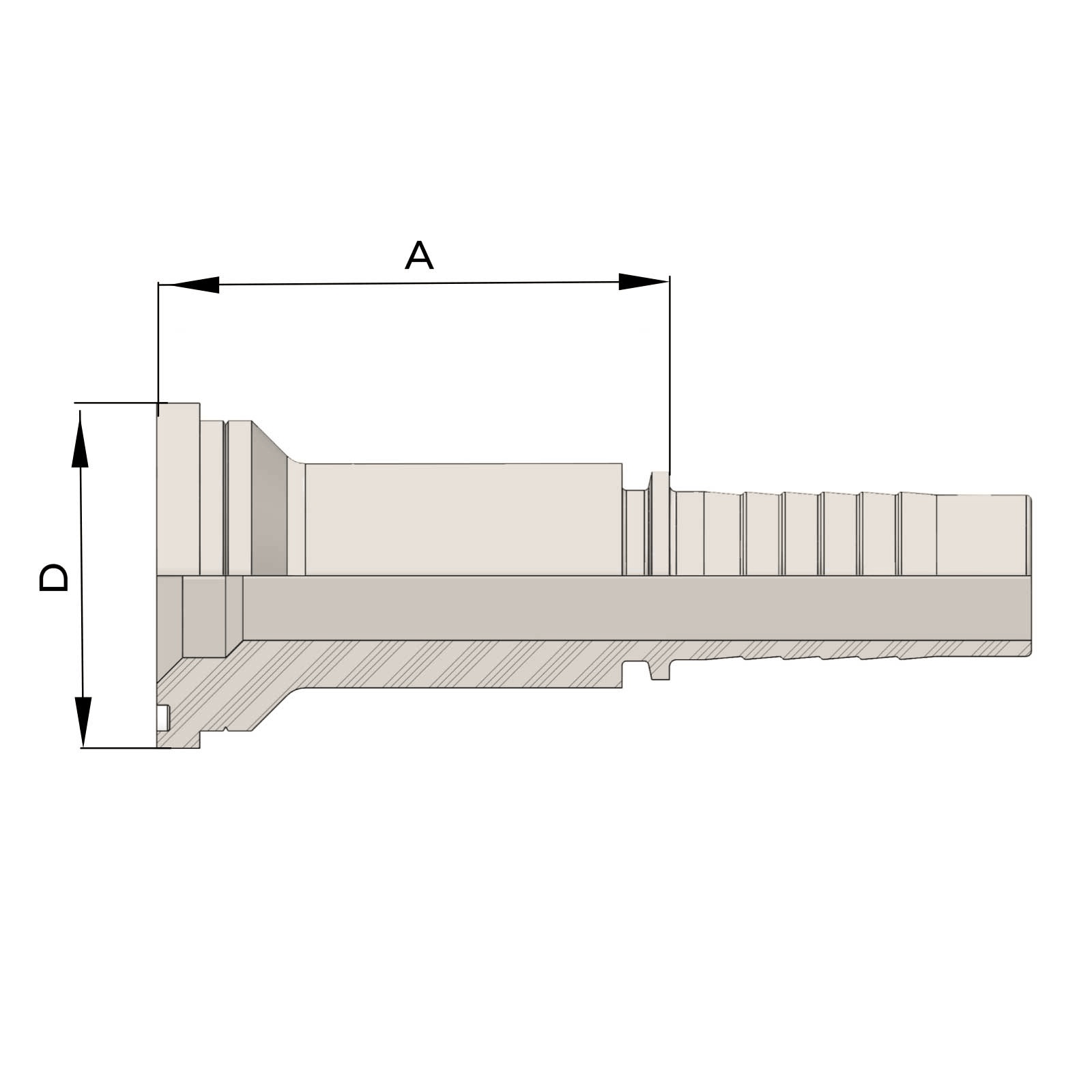

| Part Number | FLANGIA | Hose ID | FLANGIA=D | cut-off=A | |
|---|---|---|---|---|---|
| size | size | mm | mm | mm | |
| FD6012012316 | 1/2'' | 1/2" | 12,7 | 31,8 | 46 |
| FD6034012316 | 3/4" | 1/2'' | 12,7 | 41,3 | 53 |
| FD6034034316 | 3/4" | 3/4" | 19,0 | 41,3 | 54 |
| FD6001034316 | 1" | 3/4" | 19,0 | 47,6 | 60 |
| FD6001001316 | 1" | 1" | 25,4 | 47,6 | 61 |
| FD6114001316 | 1.1/4" | 1" | 25,4 | 54,0 | 68 |
| FD6114114316 | 1.1/4" | 1.1/4" | 31,8 | 54,0 | 70 |
| FD6112114316 | 1.1/2" | 1.1/4" | 31,8 | 63,5 | 76 |
| FD6112112316 | 1.1/2" | 1.1/2" | 38,1 | 63,5 | 76 |
| FD6002112316 | 2" | 1.1/2" | 38,1 | 79,4 | 85 |
| FD6002002316 | 2" | 2" | 50,8 | 79,4 | 85 |
