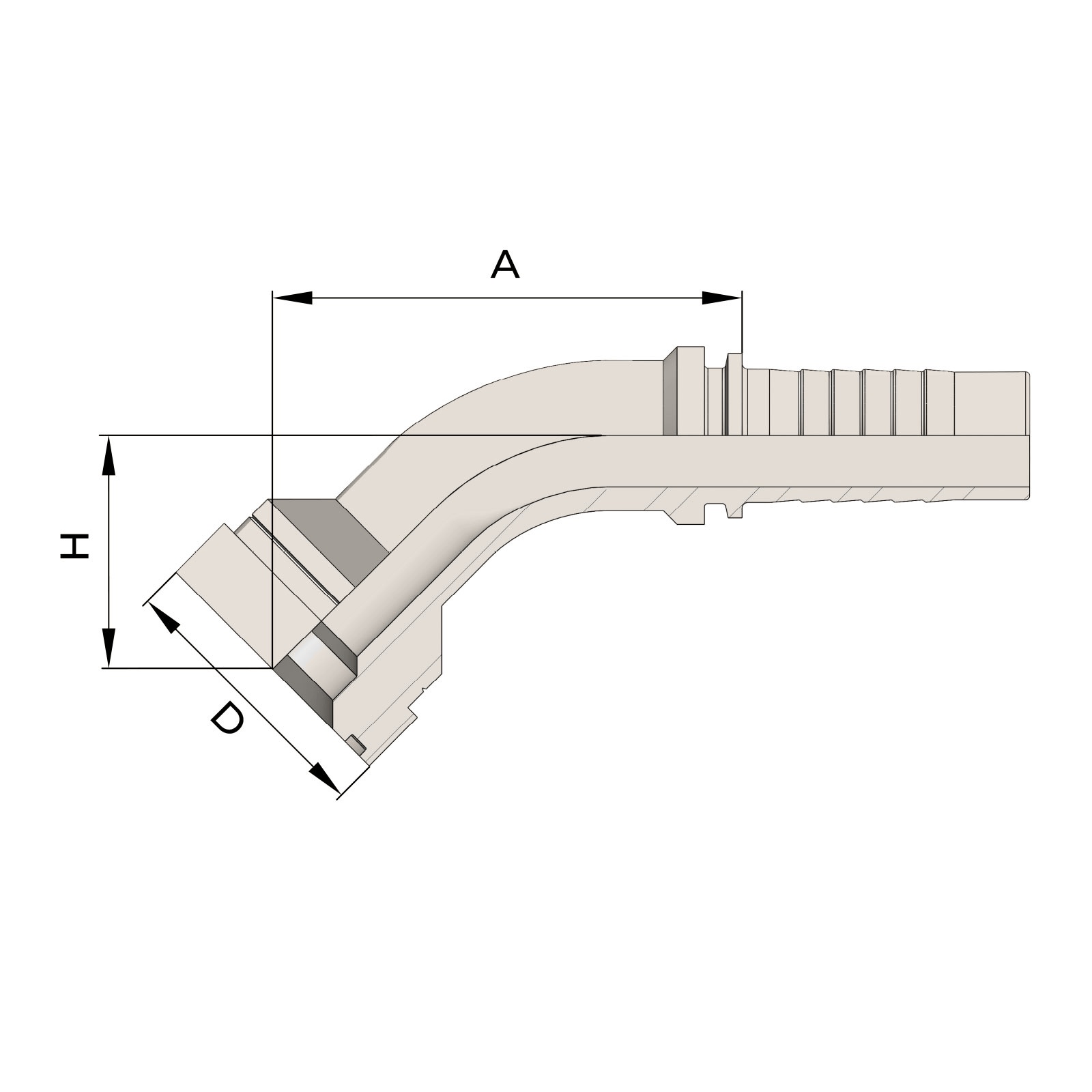

| Part Number | FLANGIA | Hose ID | FLANGIA=D | H | cut-off=A | |
|---|---|---|---|---|---|---|
| size | size | mm | mm | mm | mm | |
| F46012012316 | 1/2'' | 1/2" | 12,7 | 31,8 | 22 | 51 |
| F46034012316 | 3/4" | 1/2'' | 12,7 | 41,3 | 28 | 57 |
| F46034034316 | 3/4" | 3/4" | 19,0 | 41,3 | 30 | 72 |
| F46001034316 | 1" | 3/4" | 19,0 | 47,6 | 34 | 76 |
| F46001001316 | 1" | 1" | 25,4 | 47,6 | 36 | 85 |
| F46114001316 | 1.1/4" | 1" | 25,4 | 54,0 | 41 | 90 |
| F46114114316 | 1.1/4" | 1.1/4" | 31,8 | 54,0 | 51 | 104 |
| F46112114316 | 1.1/2" | 1.1/4" | 31,8 | 63,5 | 56 | 106 |
| F46112112316 | 1.1/2" | 1.1/2" | 38,1 | 63,5 | 57 | 118 |
| F46002112316 | 2" | 1.1/2" | 38,1 | 79,4 | 66 | 127 |
| F46002002316 | 2" | 2" | 50,8 | 79,4 | 71 | 145 |
