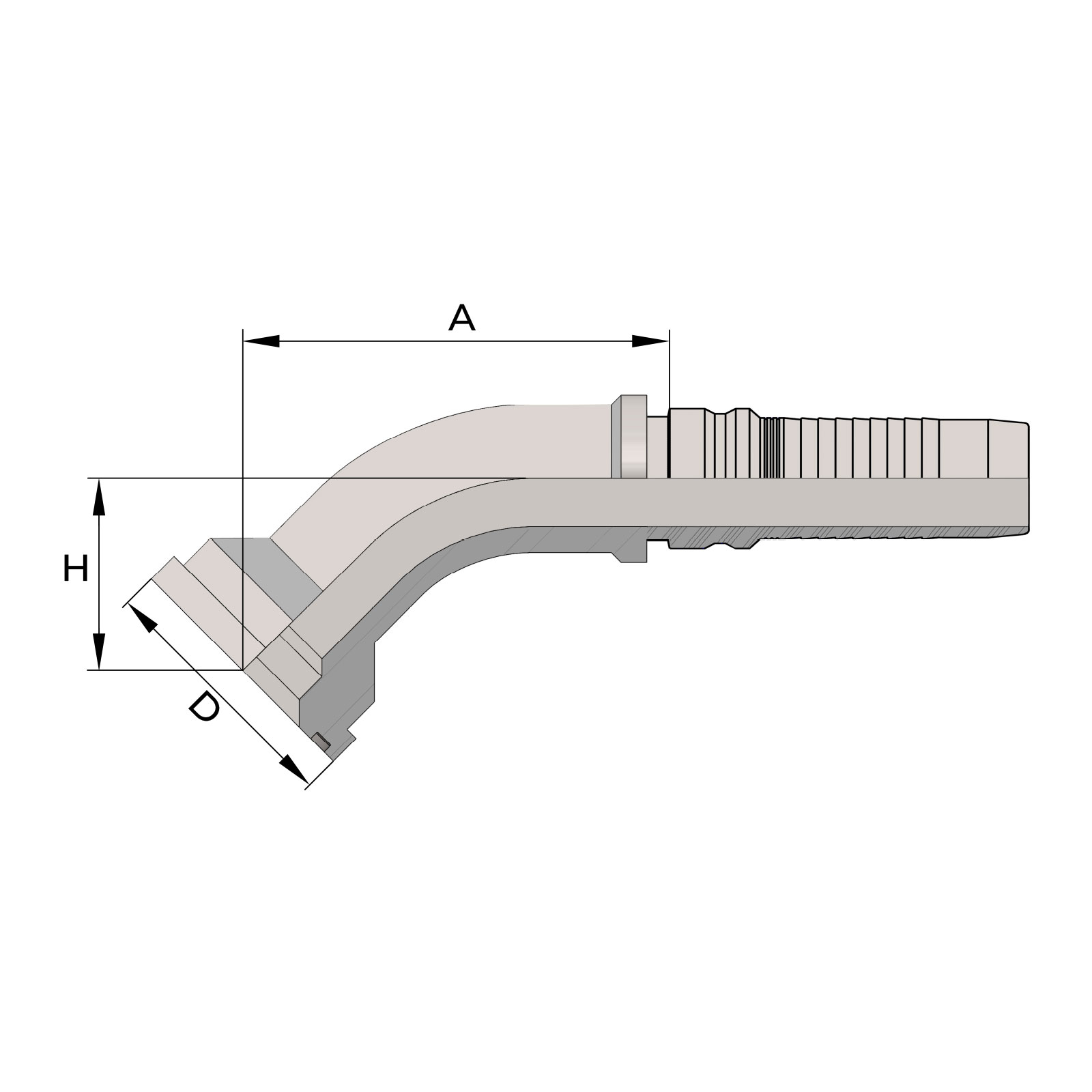

| Part Number | Flange | Hose ID | Hose ID | Flange=D | H | cut-off=A |
|---|---|---|---|---|---|---|
| size | size | mm | mm | mm | mm | |
| F43INT034034316 | 3/4" | 3/4" | 19,0 | 38,1 | 27 | 67,5 |
| F43INT001034316 | 1" | 3/4" | 19,0 | 44,5 | 31 | 70,5 |
| F43INT001001316 | 1" | 1" | 25,4 | 44,5 | 33 | 79 |
| F43INT114001316 | 1.1/4" | 1" | 25,4 | 50,8 | 37 | 83 |
| F43INT114114316 | 1.1/4" | 1.1/4" | 31,8 | 50,8 | 47 | 96 |
| F43INT112114316 | 1.1/2" | 1.1/4" | 31,8 | 60,4 | 49 | 98 |
| F43INT112112316 | 1.1/2" | 1.1/2" | 38,1 | 60,4 | 50 | 107 |
| F43INT002112316 | 2" | 1.1/2" | 38,1 | 71,4 | 52 | 109 |
| F43INT002002316 | 2" | 2" | 50,8 | 71,4 | 56 | 125 |
| F43INT212002316 | 2.1/2" | 2" | 50,8 | 84,1 | 58 | 131 |
