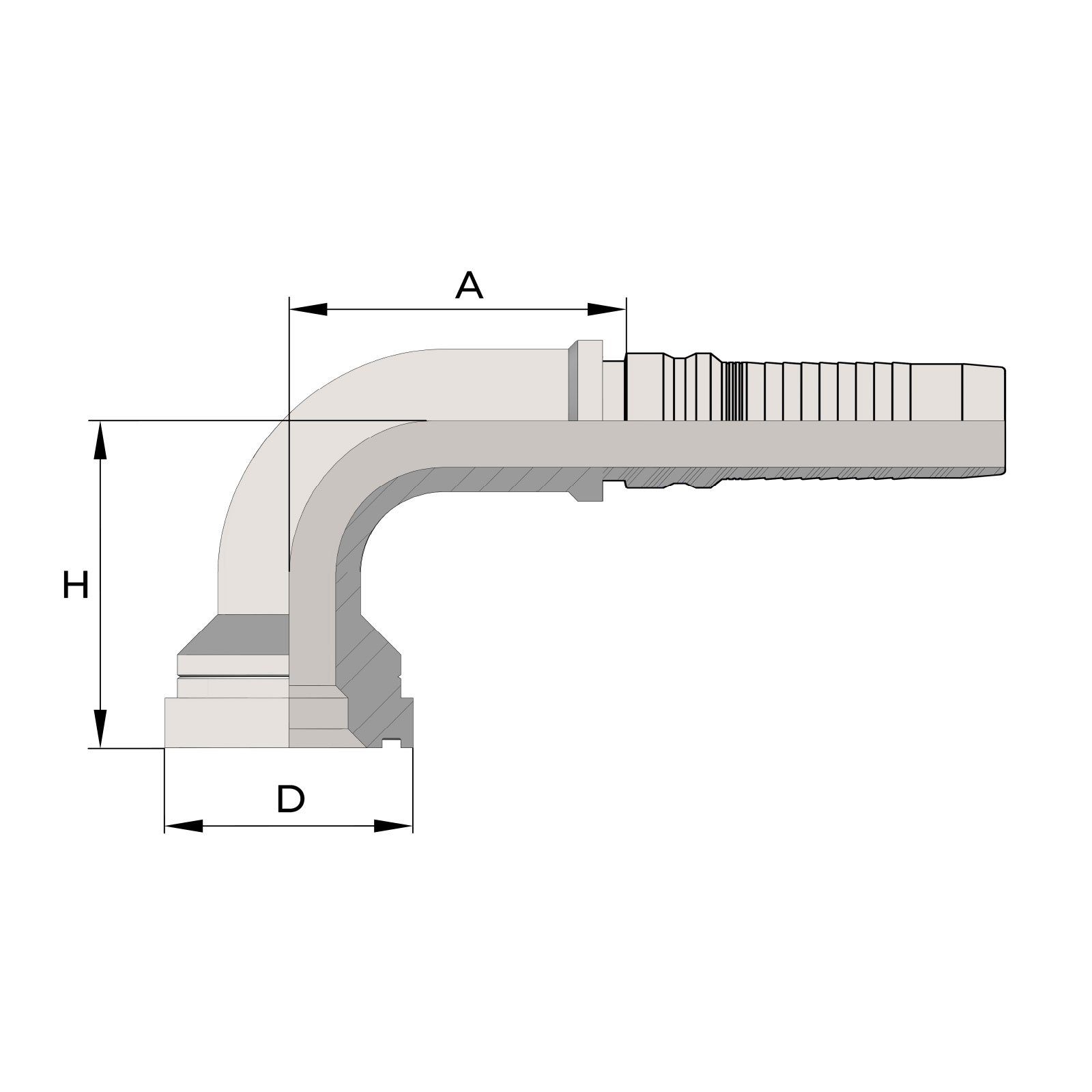

| Part Number | Flange | Hose ID | Hose ID | FLANGE=D | H | cut-off=A |
|---|---|---|---|---|---|---|
| Size | size | mm | mm | mm | mm | |
| F96INT034034316 | 3/4" | 3/4" | 19,0 | 41,3 | 55 | 48,5 |
| F96INT001034316 | 1" | 3/4" | 19,0 | 47,6 | 60 | 48,5 |
| F96INT001001316 | 1" | 1" | 25,4 | 47,6 | 66 | 55 |
| F96INT114001316 | 1.1/4" | 1" | 25,4 | 54,0 | 73 | 55 |
| F96INT114114316 | 1.1/4" | 1.1/4" | 31,8 | 54,0 | 76 | 72 |
| F96INT112114316 | 1.1/2" | 1.1/4" | 31,8 | 63,5 | 76 | 72 |
| F96INT112112316 | 1.1/2" | 1.1/2" | 38,1 | 63,5 | 107 | 91 |
| F96INT002112316 | 2" | 1.1/2" | 38,1 | 79,4 | 118 | 91 |
| F96INT002002316 | 2" | 2" | 50,8 | 79,4 | 133 | 136 |
