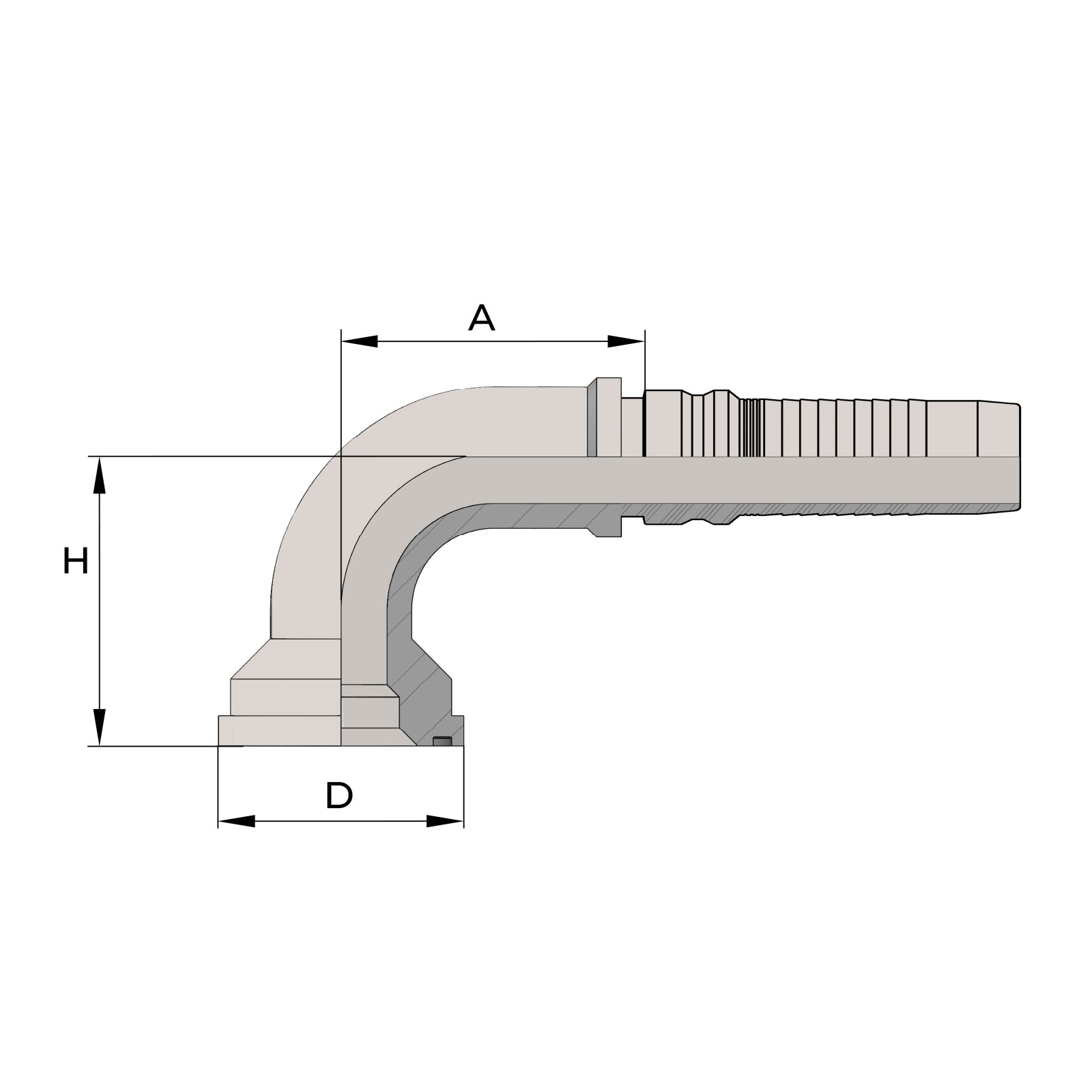

| Part Number | Flange | Hose ID | Hose ID | Flange=D | H | cut-off=A |
|---|---|---|---|---|---|---|
| size | size | mm | mm | mm | mm | |
| F93INT034034316 | 3/4" | 3/4" | 19,0 | 38,1 | 51 | 48,5 |
| F93INT001034316 | 1" | 3/4" | 19,0 | 44,5 | 54 | 48,5 |
| F93INT001001316 | 1" | 1" | 25,4 | 44,5 | 62 | 55 |
| F93INT114001316 | 1.1/4" | 1" | 25,4 | 50,8 | 70 | 55 |
| F93INT114114316 | 1.1/4" | 1.1/4" | 31,8 | 50,8 | 75 | 73 |
| F93INT112114316 | 1.1/2" | 1.1/4" | 31,8 | 60,4 | 75 | 73 |
| F93INT112112316 | 1.1/2" | 1.1/2" | 38,1 | 60,4 | 107 | 91 |
| F93INT002112316 | 2" | 1.1/2" | 38,1 | 71,4 | 107 | 91 |
| F93INT002002316 | 2" | 2" | 50,8 | 71,4 | 125 | 132 |
| F93INT212002316 | 2.1/2" | 2" | 50,8 | 84,1 | 128 | 132 |
