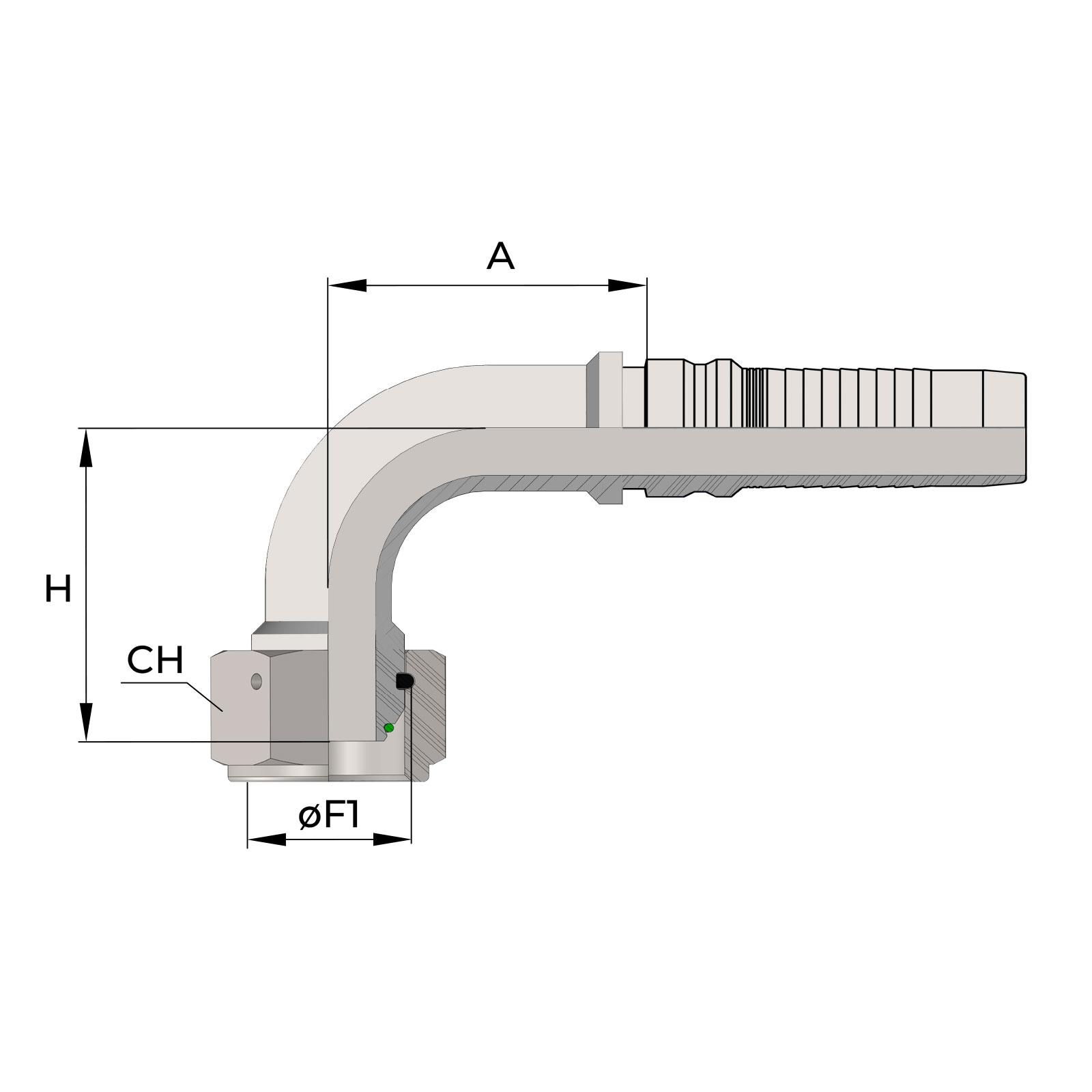

| Part Number | Thread | Hose ID | Hose ID | CH | H | cut-off=A | O-RING VITON |
|---|---|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | mm | ||
| F9RINT034034316 | 3/4"-14 | 3/4" | 19,0 | 32 | 53 | 54 | SI |
| F9RINT001034316 | 1"-11 | 3/4" | 19,0 | 38 | 66 | 54 | SI |
| F9RINT001001316 | 1"-11 | 1" | 25,4 | 38 | 66 | 62 | SI |
| F9RINT114001316 | 1.1/4"-11 | 1" | 25,4 | 50 | 70 | 62 | SI |
| F9RINT114114316 | 1.1/4"-11 | 1.1/4" | 31,8 | 50 | 78 | 82 | SI |
| F9RINT112114316 | 1.1/2"-11 | 1.1/4" | 31,8 | 55 | 87 | 82 | SI |
| F9RINT112112316 | 1.1/2"-11 | 1.1/2" | 38,1 | 55 | 104 | 100 | SI |
| F9RINT002112316 | 2"-11 | 1.1/2" | 38,1 | 70 | 114 | 105 | SI |
| F9RINT002002316 | 2"-11 | 2" | 50,8 | 70 | 138 | 135 | SI |
| F9RINT212002316 | 2.1/2"-11 | 2" | 50,8 | 85 | 140 | 135 | SI |
