MNP INT

MALE NPT INTERLOCK

INOX AISI 316

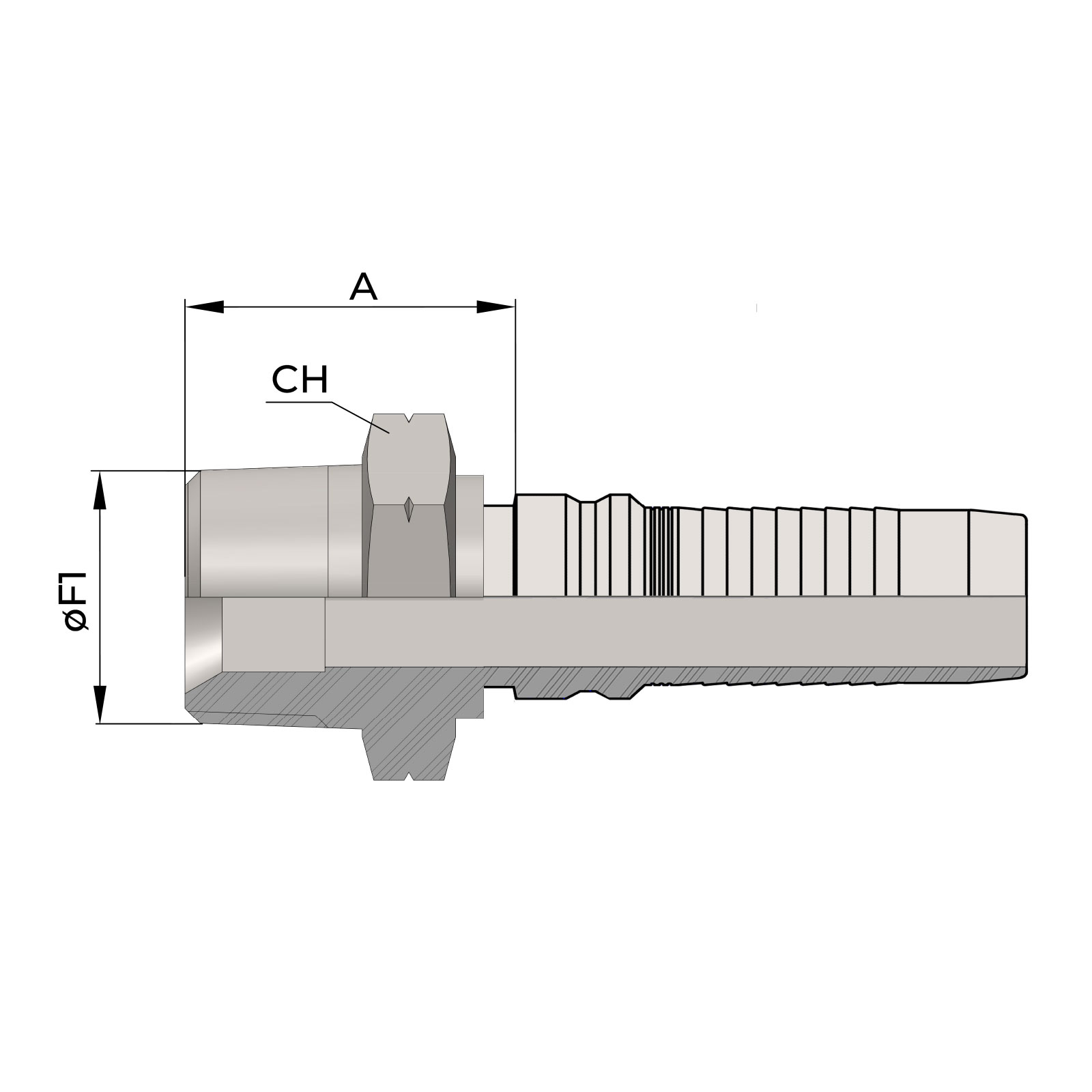

Technical drawing

Product Variants

Part Number Thread Hose ID Hose ID CH cut-off=A
F1 size mm mm mm
MNP018316316 1/8"-28 3/16" 4,8 12 22
MNP018014316 1/8"-28 1/4" 6,4 12 22
MNP014316316 1/4"-19 3/16" 4,8 14 28
MNP014014316 1/4"-19 1/4" 6,4 14 28
MNP014516316 1/4"-19 5/16" 8,0 14 28
MNP014038316 1/4"-19 3/8" 9,5 17 28
MNP038014316 3/8"-19 1/4" 6,4 17 28
MNP038516316 3/8"-19 5/16" 8,0 17 28
MNP038038316 3/8"-19 3/8" 9,5 17 28
MNP012038316 1/2"-14 3/8" 9,5 22 35
MNP012012316 1/2"-14 1/2" 12,7 22 35
MNP012058316 1/2"-14 5/8" 16,0 22 35
MNP058012316 5/8"-14 1/2" 12,7 24 36
MNP058058316 5/8"-14 5/8" 16,0 24 36
MNP034012316 3/4"-14 1/2" 12,7 27 37
MNP034058316 3/4"-14 5/8" 16,0 27 37
MNP034034316 3/4"-14 3/4" 19,0 27 37
MNP001034316 1"-11 3/4" 19,0 36 43
MNP001001316 1"-11 1" 25,4 36 43
MNP114001316 1.1/4"-11 1" 25,4 46 46
MNP114114316 1.1/4"-11 1.1/4" 31,8 46 46
MNP112114316 1.1/2"-11 1.1/4" 31,8 50 54
MNP112112316 1.1/2"-11 1.1/2" 38,1 50 54
MNP002112316 2"-11 1.1/2" 38,1 65 55
MNP002002316 2"-11 2" 50,8 65 55
“The tables, drawings, and other content on this site may be modified, updated, or removed at any time, at the sole discretion of Evosteel S.r.l., without notice, in order to correct any errors, make improvements, or avoid possible inconveniences.”
