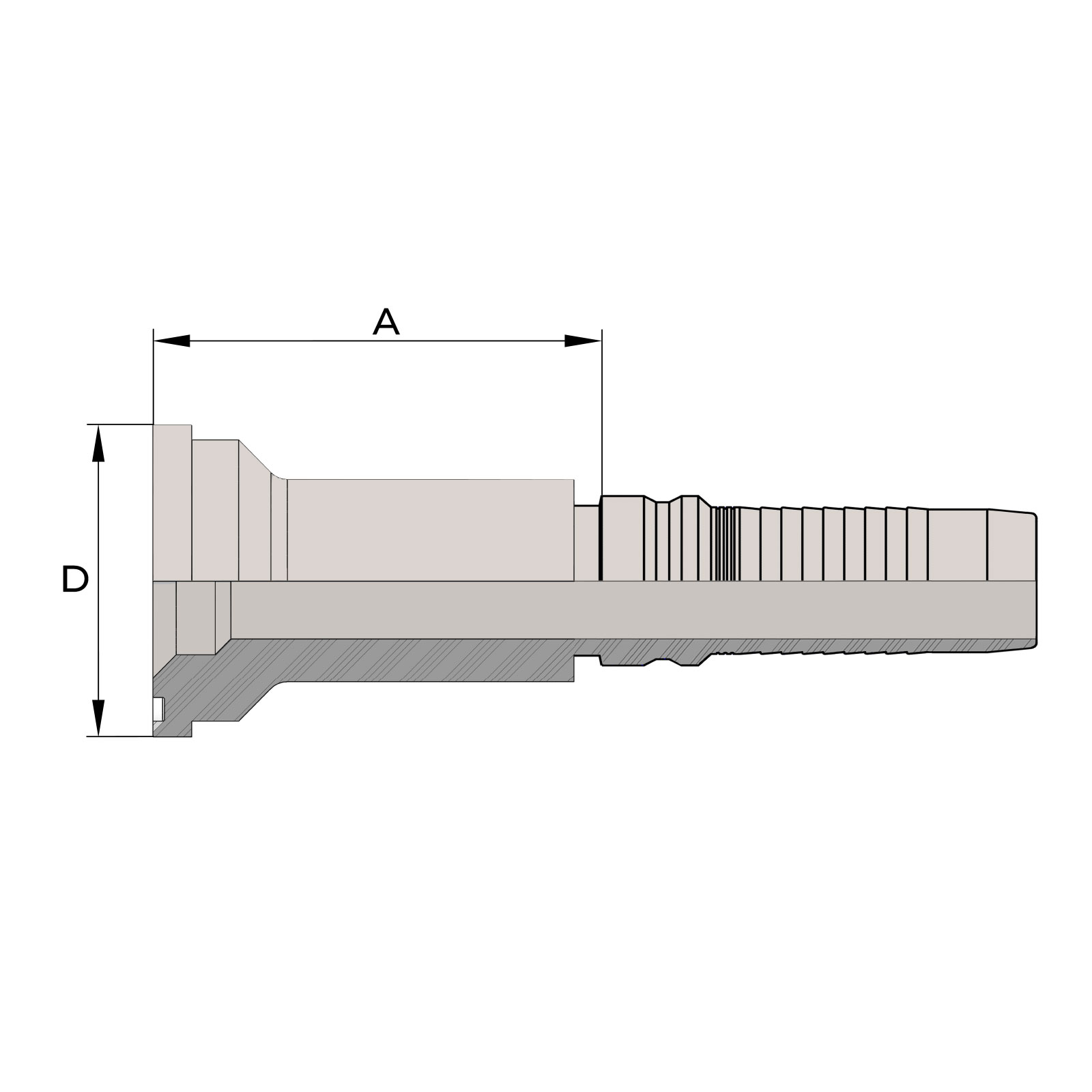

| Part Number | Flange | Hose ID | Hose ID | Flange=D | cut-off=A |
|---|---|---|---|---|---|
| size | size | mm | mm | mm | |
| FD3INT034034316 | 3/4" | 3/4" | 19,0 | 38,1 | 47,5 |
| FD3INT001034316 | 1" | 3/4" | 19,0 | 44,5 | 50,5 |
| FD3INT001001316 | 1" | 1" | 25,4 | 44,5 | 51 |
| FD3INT114001316 | 1.1/4" | 1" | 25,4 | 50,8 | 54 |
| FD3INT114114316 | 1.1/4" | 1.1/4" | 31,8 | 50,8 | 55 |
| FD3INT112114316 | 1.1/2" | 1.1/4" | 31,8 | 60,4 | 58 |
| FD3INT112112316 | 1.1/2" | 1.1/2" | 38,1 | 60,4 | 58 |
| FD3INT002112316 | 2" | 1.1/2" | 38,1 | 71,4 | 65 |
| FD3INT002002316 | 2" | 2" | 50,8 | 71,4 | 66 |
| FD3INT212002316 | 2.1/2" | 2" | 50,8 | 84,1 | 72 |
| FD3INT212212316 | 2.1/2" | 2.1/2" | 63,0 | 84,1 | 72 |
| FD3INT003003316 | 3" | 3" | 76,0 | 101,6 | 83 |
