FDR INT

INTERLOCK BSP FEMALE 60° FLARE THURST WIRE NUT

INOX AISI 316

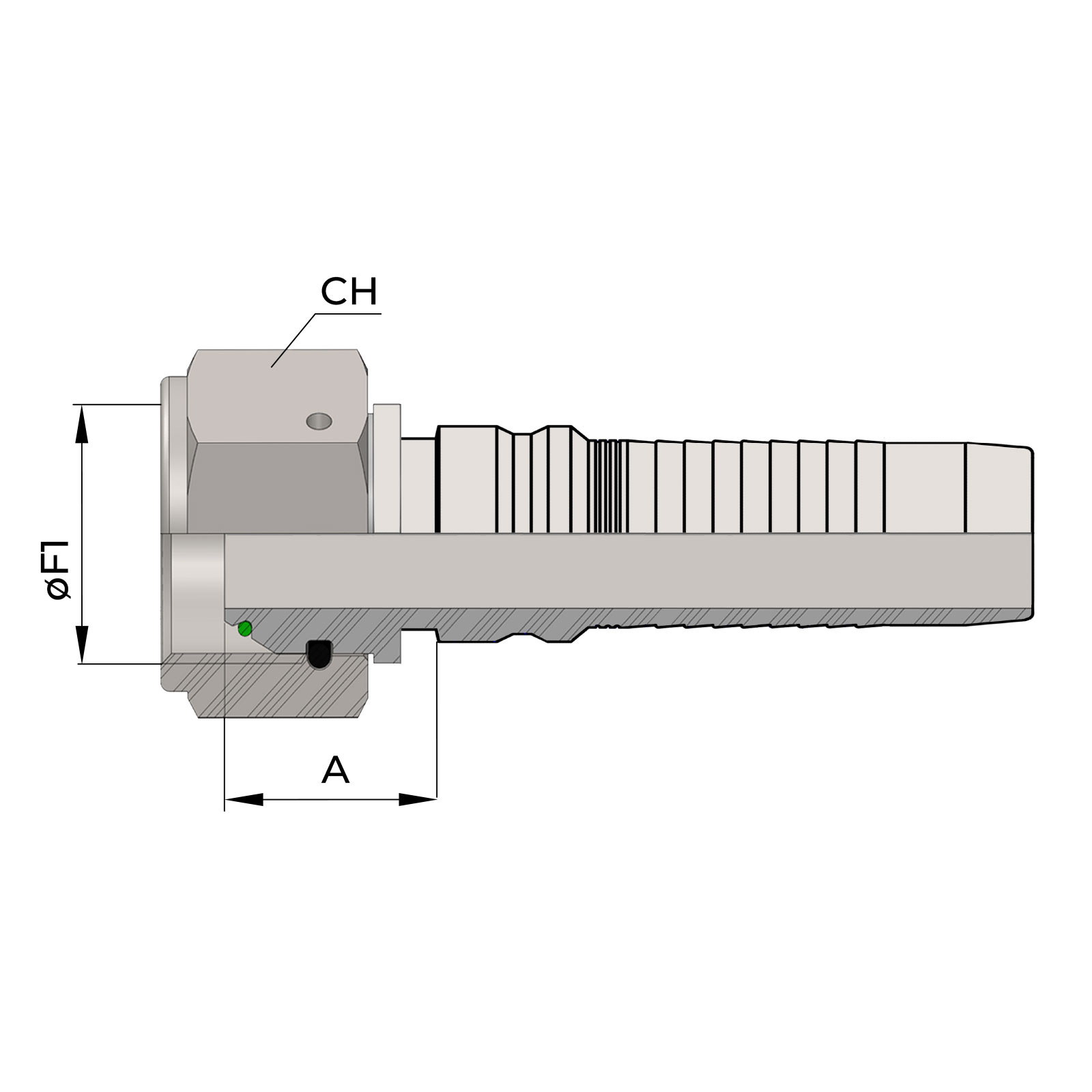

Technical drawing

Product Variants

Part Number Thread Hose ID Hose ID CH cut-off=A O-RING VITON
F1 size mm mm mm
FDRINT034034316 3/4"-14 3/4" 19,0 32 23 SI
FDRINT001034316 1"-11 3/4" 19,0 38 26 SI
FDRINT001001316 1"-11 1" 25,4 38 26 SI
FDRINT114001316 1.1/4"-11 1" 25,4 50 29 SI
FDRINT114114316 1.1/4"-11 1.1/4" 31,8 50 29 SI
FDRINT112114316 1.1/2"-11 1.1/4" 31,8 55 34 SI
FDRINT112112316 1.1/2"-11 1.1/2" 38,1 55 34 SI
FDRINT002112316 2"-11 1.1/2" 38,1 70 34 SI
FDRINT002002316 2"-11 2" 50,8 70 34 SI
FDRINT212002316 2.1/2"-11 2" 50,8 85 34 SI
“The tables, drawings, and other content on this site may be modified, updated, or removed at any time, at the sole discretion of Evosteel S.r.l., without notice, in order to correct any errors, make improvements, or avoid possible inconveniences.”
