STRAIGHT FLANGE SAE 3000

INOX AISI 316

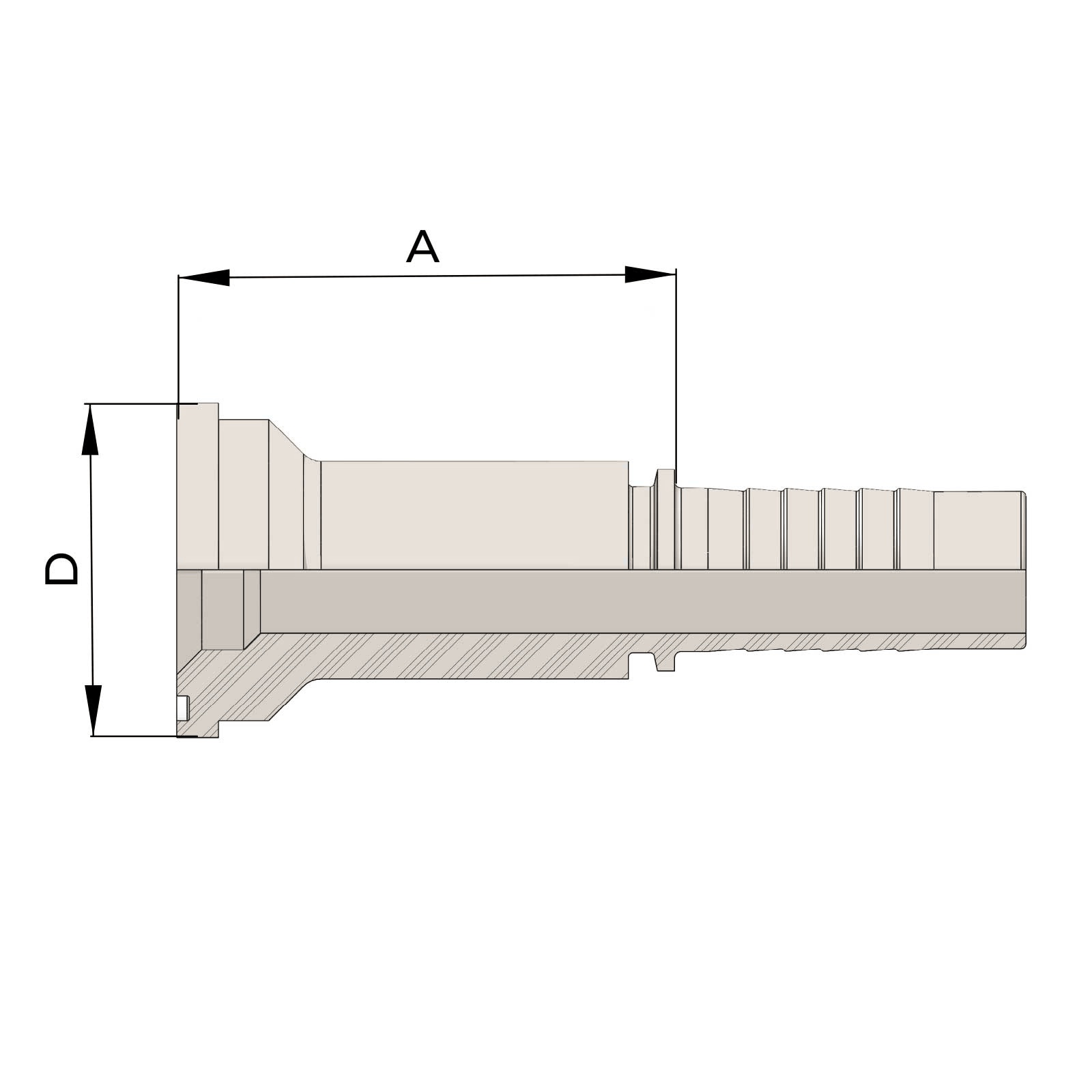

Technical drawing

Product Variants

Part Number FLANGIA Hose ID FLANGIA=D cut-off=A
size size mm mm mm
FD3012012316 1/2'' 1/2" 12,7 30.2 45
FD3034012316 3/4" 1/2'' 12,7 38,1 50
FD3034034316 3/4" 3/4" 19,0 38,1 50
FD3001034316 1" 3/4" 19,0 44,5 53
FD3001001316 1" 1" 25,4 44,5 54
FD3114001316 1.1/4" 1" 25,4 50,8 57
FD3114114316 1.1/4" 1.1/4" 31,8 50,8 59
FD3112114316 1.1/2" 1.1/4" 31,8 60,4 62
FD3112112316 1.1/2" 1.1/2" 38,1 60,4 62
FD3002112316 2" 1.1/2" 38,1 71,4 69
FD3002002316 2" 2" 50,8 71,4 70
FD3212002316 2.1/2" 2" 50,8 84,1 76
FD3212212316 2.1/2" 2.1/2" 63,0 84,1 76
FD3003003316 3" 3" 76,0 101,6 87
