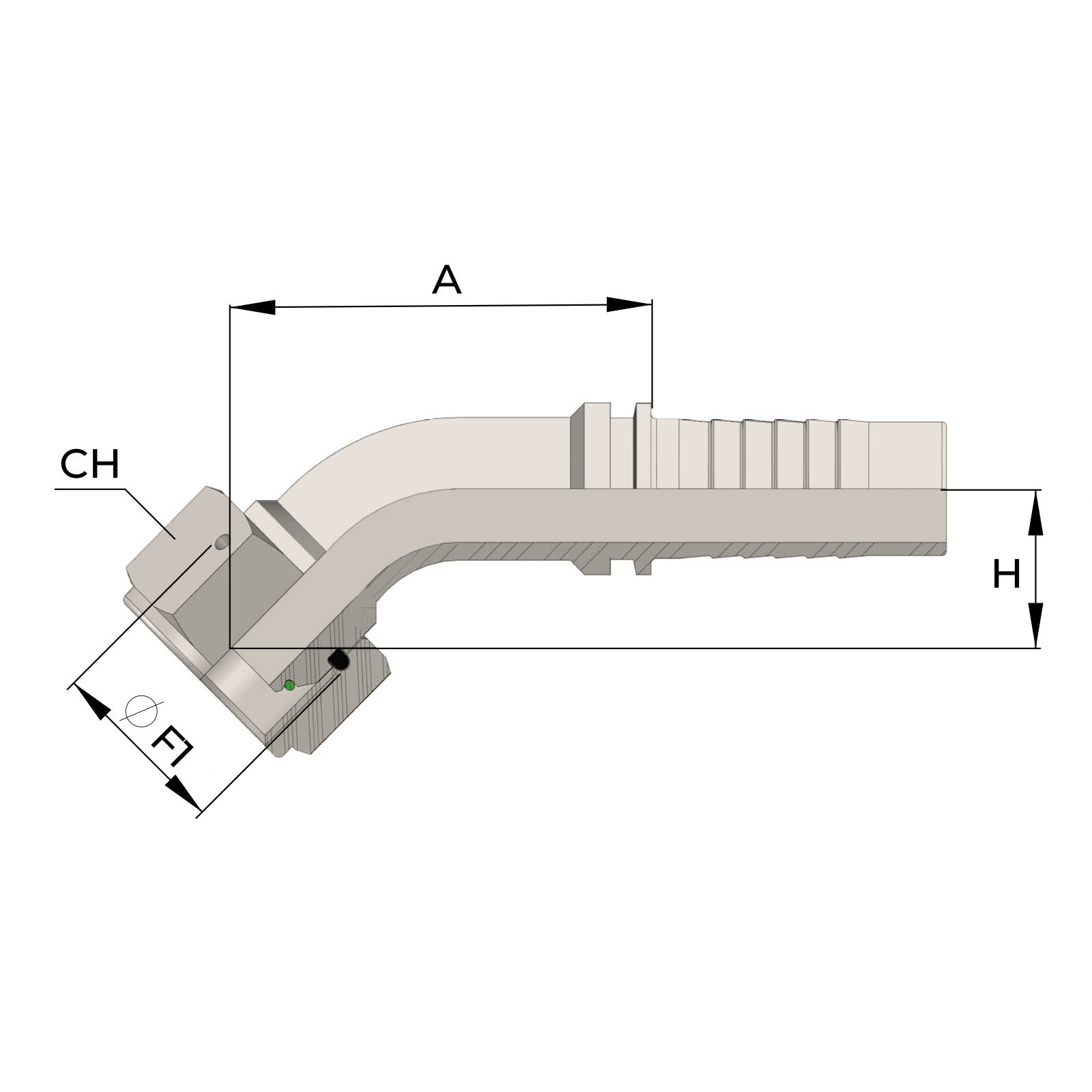

| Part Number | Thread | Hose ID | CH | H | cut-off=A | O-RING VITON | |
|---|---|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | mm | ||
| F45018018316* | 1/8"-24 | 1/8" | 3,7 | 14 | 16 | 42 | NO |
| F45018316316* | 1/8"-24 | 3/16" | 4,8 | 14 | 16 | 42 | NO |
| F45014316316 | 1/4"-19 | 3/16" | 4,8 | 19 | 16 | 42 | NO |
| F45014014316 | 1/4"-19 | 1/4" | 6,4 | 19 | 16 | 45 | NO |
| F45014516316 | 1/4"-19 | 5/16" | 8,0 | 19 | 19 | 45 | NO |
| F45014038316 | 1/4"-19 | 3/8" | 9,5 | 19 | 20 | 45 | NO |
| F45038014316 | 3/8"-19 | 1/4" | 6,4 | 22 | 17 | 45 | NO |
| F45038516316 | 3/8"-19 | 5/16" | 8,0 | 22 | 19 | 45 | NO |
| F45038038316 | 3/8"-19 | 3/8" | 9,5 | 22 | 20 | 48 | NO |
| F45038012316 | 3/8"-19 | 1/2" | 12,7 | 22 | 23 | 52 | NO |
| F4R012038316 | 1/2"-14 | 3/8" | 9,5 | 27 | 22 | 52 | SI |
| F4R012012316 | 1/2"-14 | 1/2" | 12,7 | 27 | 23 | 54 | SI |
| F4R012058316 | 1/2"-14 | 5/8" | 16,0 | 27 | 23 | 55 | SI |
| F4R058012316 | 5/8"-14 | 1/2" | 12,7 | 30 | 23 | 55 | SI |
| F4R058058316 | 5/8"-14 | 5/8" | 16,0 | 30 | 25 | 55 | SI |
| F4R034012316 | 3/4"-14 | 1/2" | 12,7 | 32 | 26 | 55 | SI |
| F4R034058316 | 3/4"-14 | 5/8" | 16,0 | 32 | 28 | 70 | SI |
| F4R034034316 | 3/4"-14 | 3/4" | 19,0 | 32 | 30 | 73 | SI |
| F4R001034316 | 1"-11 | 3/4" | 19,0 | 38 | 36 | 78 | SI |
| F4R001001316 | 1"-11 | 1" | 25,4 | 38 | 36 | 88 | SI |
| F4R114001316 | 1.1/4"-11 | 1" | 25,4 | 50 | 45 | 98 | SI |
| F4R114114316 | 1.1/4"-11 | 1.1/4" | 31,8 | 50 | 35 | 110 | SI |
| F4R112114316 | 1.1/2"-11 | 1.1/4" | 31,8 | 55 | 45 | 113 | SI |
| F4R112112316 | 1.1/2"-11 | 1.1/2" | 38,1 | 55 | 45 | 144 | SI |
| F4R002112316 | 2"-11 | 1.1/2" | 38,1 | 70 | 50 | 148 | SI |
| F4R002002316 | 2"-11 | 2" | 50,8 | 70 | 65 | 154 | SI |
| F4R212002316 | 2.1/2"-11 | 2" | 50,8 | 85 | 70 | 156 | SI |
| F4R212212316 ** | 2.1/2"-11 | 2.1/2" | 63,0 | 85 | 60 | 105 | SI |
| F4R003212316 ** | 3"-11 | 2.1/2" | 63,0 | 100 | 60 | 165 | SI |
| F4R003003316 ** | 3"-11 | 3" | 76,0 | 100 | 60 | 167 | SI |
