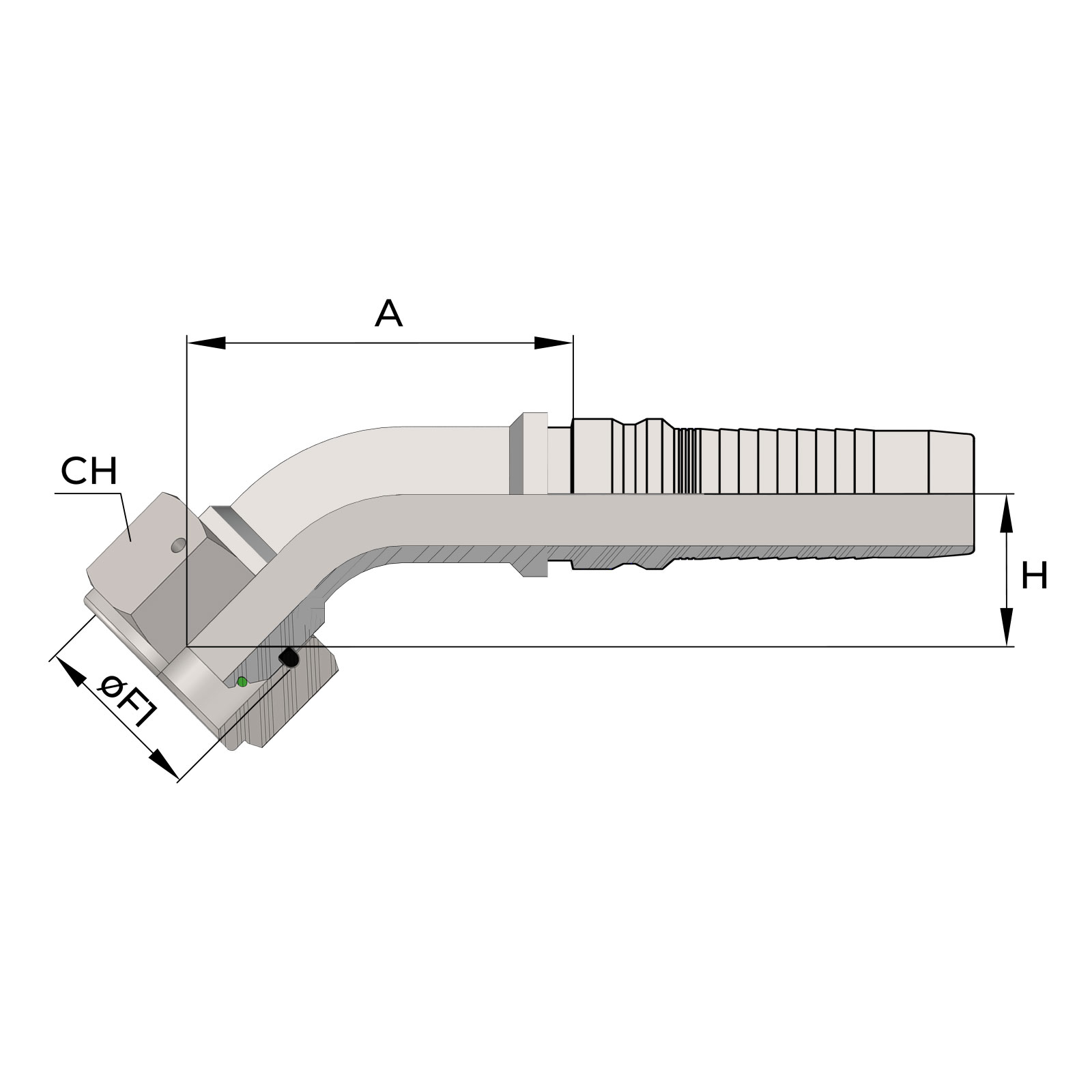

| Part Number | Thread | Hose ID | Hose ID | CH | H | cut-off=A | O-RING VITON |
|---|---|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | mm | ||
| F4RINT034034316 | 3/4"-14 | 3/4" | 19,0 | 32 | 30 | 73 | SI |
| F4RINT001034316 | 1"-11 | 3/4" | 19,0 | 38 | 36 | 73 | SI |
| F4RINT001001316 | 1"-11 | 1" | 25,4 | 38 | 36 | 78 | SI |
| F4RINT114001316 | 1.1/4"-11 | 1" | 25,4 | 50 | 45 | 100 | SI |
| F4RINT114114316 | 1.1/4"-11 | 1.1/4" | 31,8 | 50 | 35 | 105 | SI |
| F4RINT112114316 | 1.1/2"-11 | 1.1/4" | 31,8 | 55 | 45 | 115 | SI |
| F4RINT112112316 | 1.1/2"-11 | 1.1/2" | 38,1 | 55 | 45 | 140 | SI |
| F4RINT002112316 | 2"-11 | 1.1/2" | 38,1 | 70 | 50 | 140 | SI |
| F4RINT002002316 | 2"-11 | 2" | 50,8 | 70 | 65 | 150 | SI |
| F4RINT212002316 | 2.1/2"-11 | 2" | 50,8 | 85 | 70 | 150 | SI |
