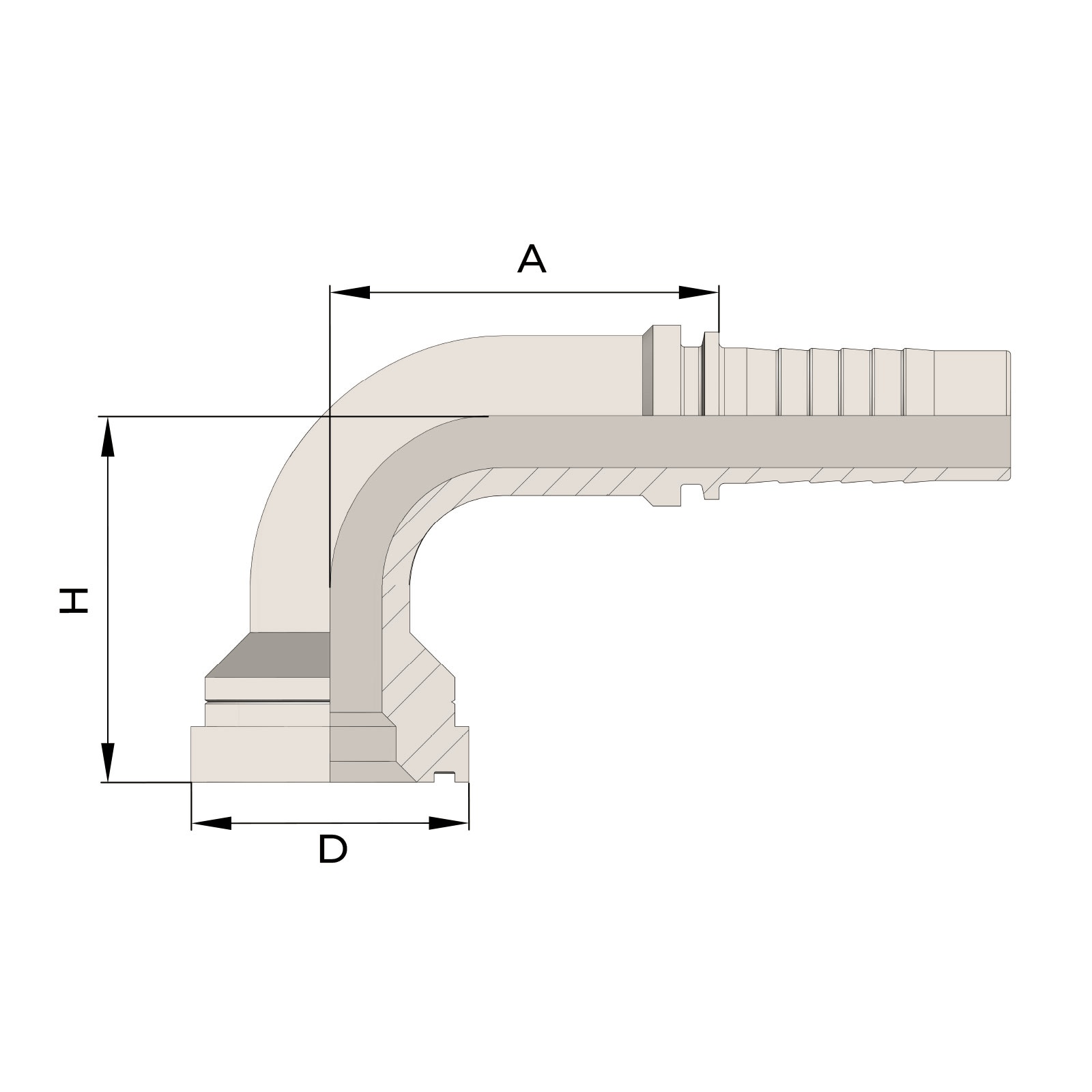

| Part Number | FLANGIA | Hose ID | FLANGIA=D | H | cut-off=A | |
|---|---|---|---|---|---|---|
| size | size | mm | mm | mm | mm | |
| F96012012316 | 1/2" | 1/2" | 12,7 | 31,8 | 41 | 41 |
| F96034012316 | 3/4" | 1/2" | 12,7 | 41,3 | 41 | 51 |
| F96034034316 | 3/4" | 3/4" | 19 | 41,3 | 55 | 51 |
| F96001034316 | 1" | 3/4" | 19 | 47,6 | 60 | 51 |
| F96001001316 | 1" | 1" | 25,4 | 47,6 | 66 | 58 |
| F96114001316 | 1.1/4" | 1" | 25,4 | 54 | 73 | 58 |
| F96114114316 | 1.1/4" | 1.1/4" | 31,8 | 54 | 76 | 76 |
| F96112114316 | 1.1/2" | 1.1/4" | 31,8 | 63,5 | 76 | 76 |
| F96112112316 | 1.1/2" | 1.1/2" | 38,1 | 63,5 | 107 | 95 |
| F96002112316 | 2" | 1.1/2" | 38,1 | 79,4 | 118 | 95 |
| F96002002316 | 2" | 2" | 50,8 | 79,4 | 133 | 140 |
