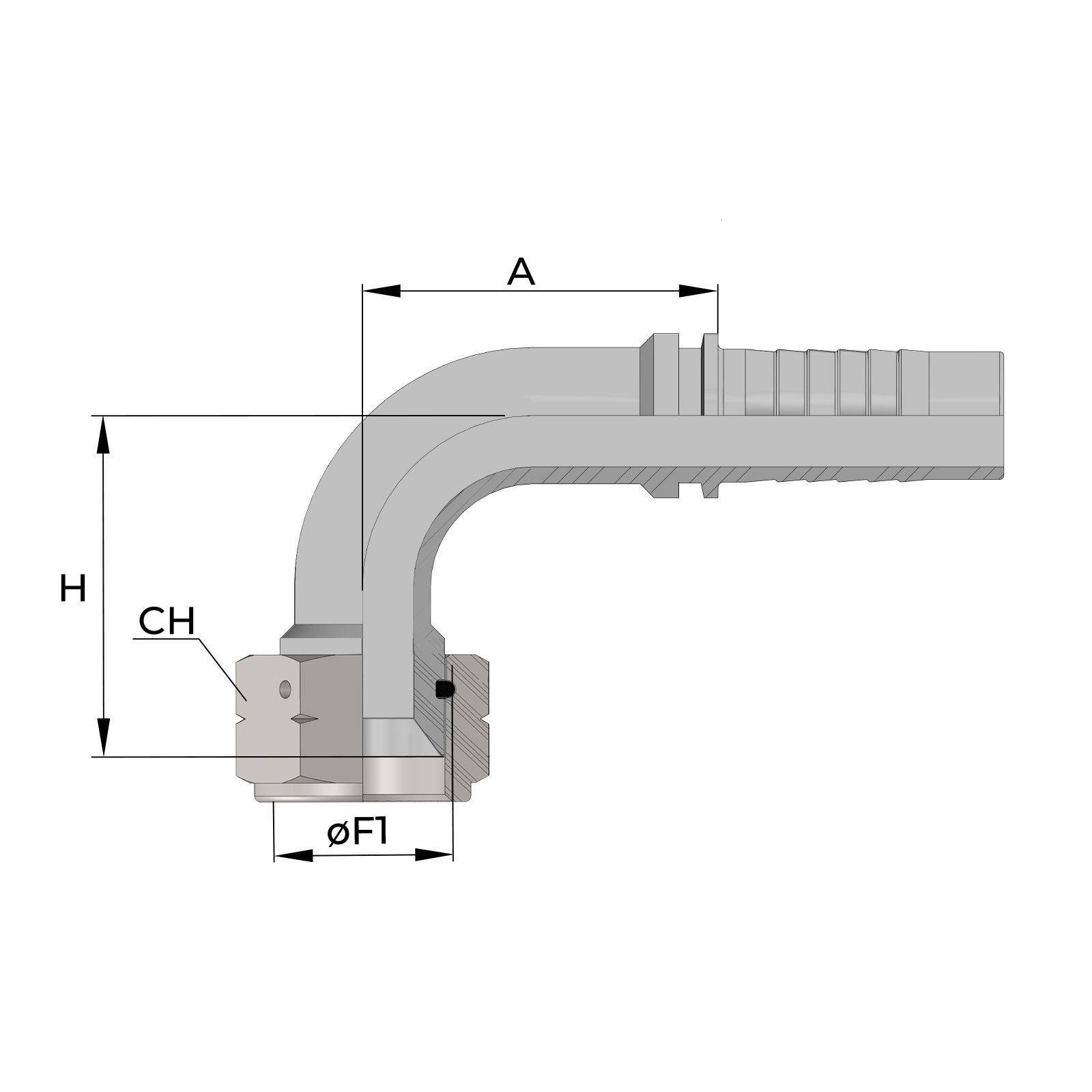

| Part Number | Thread | Hose ID | Hose ID | CH | H | cut-off=A |
|---|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | mm | |
| F9J0716316316 | 7/16"-20 | 3/16" | 4,8 | 17 | 30 | 26 |
| F9J0716014316 | 7/16"-20 | 1/4" | 6,4 | 17 | 30 | 26 |
| F9J0012014316 | 1/2"-20 | 1/4" | 6,4 | 19 | 30 | 26 |
| F9J0916014316 | 9/16"-18 | 1/4" | 6,4 | 19 | 30 | 26 |
| F9J0916516316 | 9/16"-18 | 5/16" | 8,0 | 19 | 30 | 26 |
| F9J0916038316 | 9/16"-18 | 3/8" | 9,5 | 19 | 35 | 34 |
| F9J0034038316 | 3/4"-16 | 3/8" | 9,5 | 24 | 35 | 34 |
| F9J0034012316 | 3/4"-16 | 1/2" | 12,7 | 24 | 41 | 36 |
| F9J0034058316 | 3/4"-16 | 5/8" | 16,0 | 24 | 51 | 43 |
| F9J0078038316 | 7/8"-14 | 3/8" | 9,5 | 27 | 38 | 34 |
| F9J0078012316 | 7/8"-14 | 1/2" | 12,7 | 27 | 42 | 36 |
| F9J0078058316 | 7/8"-14 | 5/8" | 16,0 | 27 | 51 | 43 |
| F9J1116012316 | 1.11/16"-12 | 1/2" | 12,7 | 32 | 45 | 36 |
| F9J1116058316 | 1.11/16"-12 | 5/8" | 16,0 | 32 | 54 | 43 |
| F9J1116034316 | 1.11/16"-12 | 3/4" | 19,0 | 32 | 54 | 49 |
| F9J1516034316 | 1.5/16"-12 | 3/4" | 19,0 | 38 | 57 | 49 |
| F9J1516001316 | 1.5/16"-12 | 1" | 25,4 | 38 | 70 | 57 |
| F9J0158114316 | 1.5/8"-12 | 1.1/4" | 31,8 | 50 | 83 | 71 |
| F9J0178112316 | 1.7/8"-12 | 1.1/2" | 38,1 | 55 | 110 | 96 |
| F9J0212002316 | 2.1/2"-12 | 2" | 50,8 | 70 | 138 | 125 |
