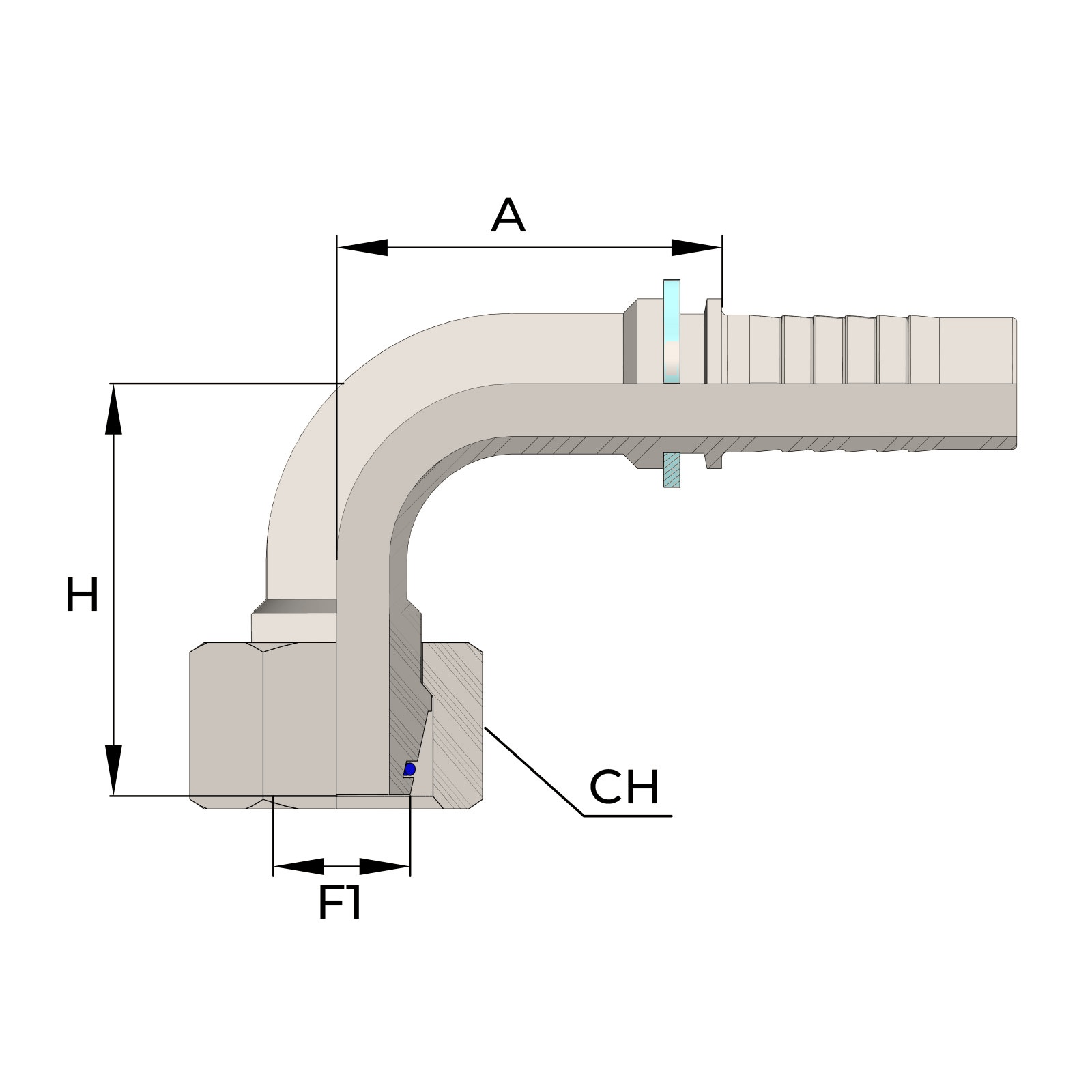

| Part Number | Thread | DIN24° | Hose ID | HoseID | CH | H | cut-off=A |
|---|---|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | mm | ||
| FE906L316316 | 12x1.5 | 6L | 3/16" | 4,8 | 14 | 28 | 29 |
| FE906L014316 | 12x1.5 | 6L | 1/4" | 6,4 | 14 | 32 | 27 |
| FE908L316316 | 14x1.5 | 8L | 3/16" | 4,8 | 17 | 32 | 29 |
| FE908L014316 | 14x1.5 | 8L | 1/4" | 6,4 | 17 | 32 | 27 |
| FE908L516316 | 14x1.5 | 8L | 5/16" | 8,0 | 17 | 40 | 27 |
| FE908L038316 | 14x1.5 | 8L | 3/8" | 9,5 | 17 | 40 | 30 |
| FE910L014316 | 16x1.5 | 10L | 1/4" | 6,4 | 19 | 32 | 27 |
| FE910L516316 | 16x1.5 | 10L | 5/16" | 8,0 | 19 | 35 | 30 |
| FE910L038316 | 16x1.5 | 10L | 3/8" | 9,5 | 19 | 40 | 30 |
| FE912L014316 | 18x1.5 | 12L | 1/4" | 6,4 | 22 | 40 | 27 |
| FE912L516316 | 18x1.5 | 12L | 5/16" | 8,0 | 22 | 40 | 27 |
| FE912L038316 | 18x1.5 | 12L | 3/8" | 9,5 | 22 | 40 | 30 |
| FE912L012316 | 18x1.5 | 12L | 1/2" | 12,7 | 22 | 45 | 39 |
| FE915L516316 | 22x1.5 | 15L | 5/16" | 8,0 | 27 | 40 | 27 |
| FE915L038316 | 22x1.5 | 15L | 3/8" | 9,5 | 27 | 40 | 30 |
| FE915L012316 | 22x1.5 | 15L | 1/2" | 12,7 | 27 | 45 | 39 |
| FE918L012316 | 26x1.5 | 18L | 1/2" | 12,7 | 32 | 45 | 39 |
| FE918L058316 | 26x1.5 | 18L | 5/8" | 16,0 | 32 | 55 | 38 |
| FE918L034316 | 26x1.5 | 18L | 3/4" | 19,0 | 32 | 58 | 51 |
| FE922L012316 | 30x2 | 22L | 1/2" | 12,7 | 36 | 45 | 39 |
| FE922L058316 | 30x2 | 22L | 5/8" | 16,0 | 36 | 48 | 38 |
| FE922L034316 | 30x2 | 22L | 3/4" | 19,0 | 36 | 54 | 51 |
| FE928L058316 | 36x2 | 28L | 5/8" | 16,0 | 41 | 57 | 38 |
| FE928L034316 | 36x2 | 28L | 3/4" | 19,0 | 41 | 57 | 51 |
| FE928L001316 | 36x2 | 28L | 1" | 25,4 | 41 | 60 | 62 |
| FE935L114316 | 45x2 | 35L | 1.1/4" | 31,8 | 50 | 75 | 75 |
| FE942L112316 | 52x2 | 42L | 1.1/2" | 38,1 | 60 | 100 | 97 |
