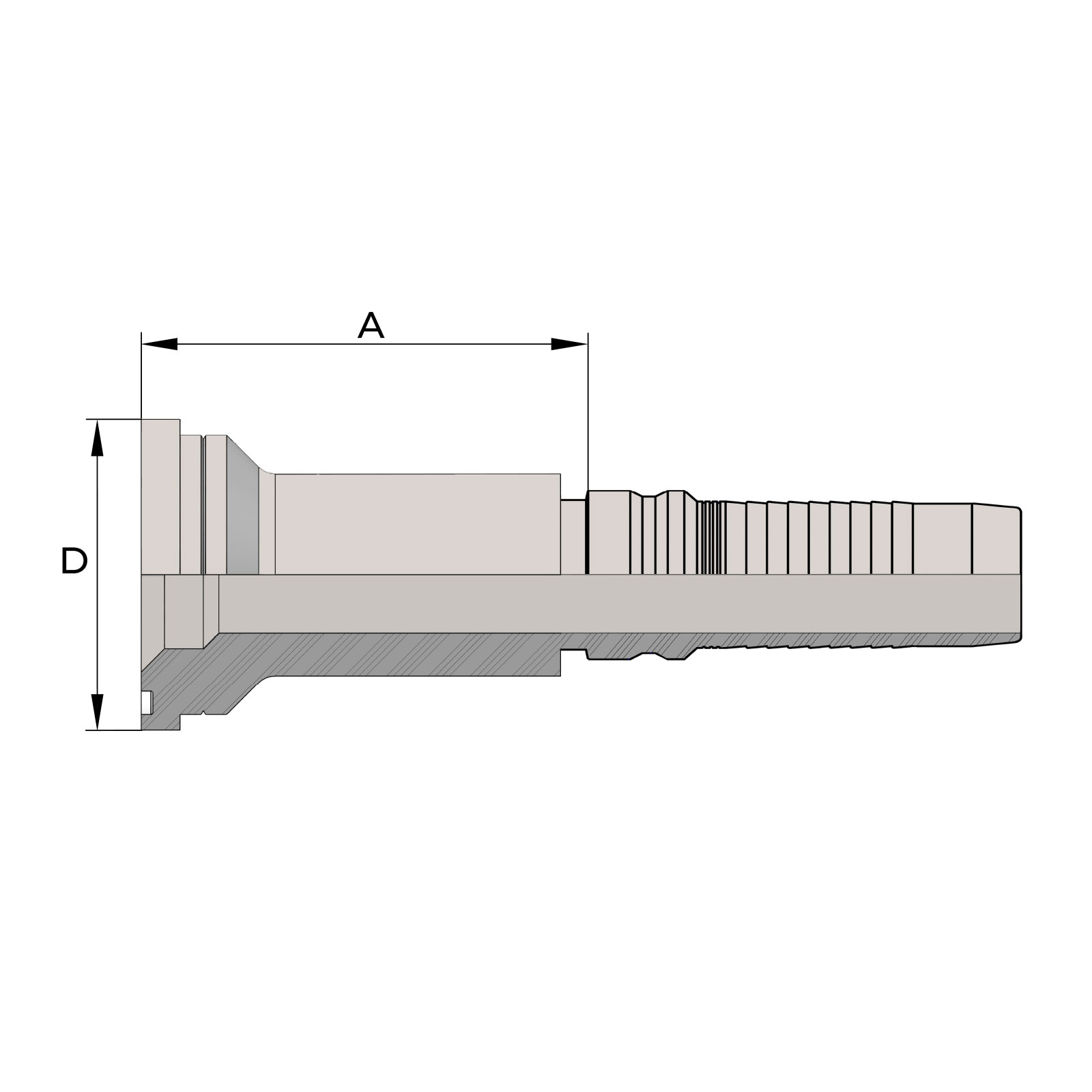

| Part Number | Flange | Hose ID | Hose ID | Flange=D | cut-off=A |
|---|---|---|---|---|---|
| size | size | mm | mm | mm | |
| FD6INT034034316 | 3/4" | 3/4" | 19,0 | 41,3 | 51,5 |
| FD6INT001034316 | 1" | 3/4" | 19,0 | 47,6 | 57 |
| FD6INT001001316 | 1" | 1" | 25,4 | 47,6 | 58 |
| FD6INT114001316 | 1.1/4" | 1" | 25,4 | 54,0 | 65 |
| FD6INT114114316 | 1.1/4" | 1.1/4" | 31,8 | 54,0 | 66 |
| FD6INT112114316 | 1.1/2" | 1.1/4" | 31,8 | 63,5 | 72 |
| FD6INT112112316 | 1.1/2" | 1.1/2" | 38,1 | 63,5 | 73 |
| FD6INT002112316 | 2" | 1.1/2" | 38,1 | 79,4 | 81 |
| FD6INT002002316 | 2" | 2" | 50,8 | 79,4 | 81 |
