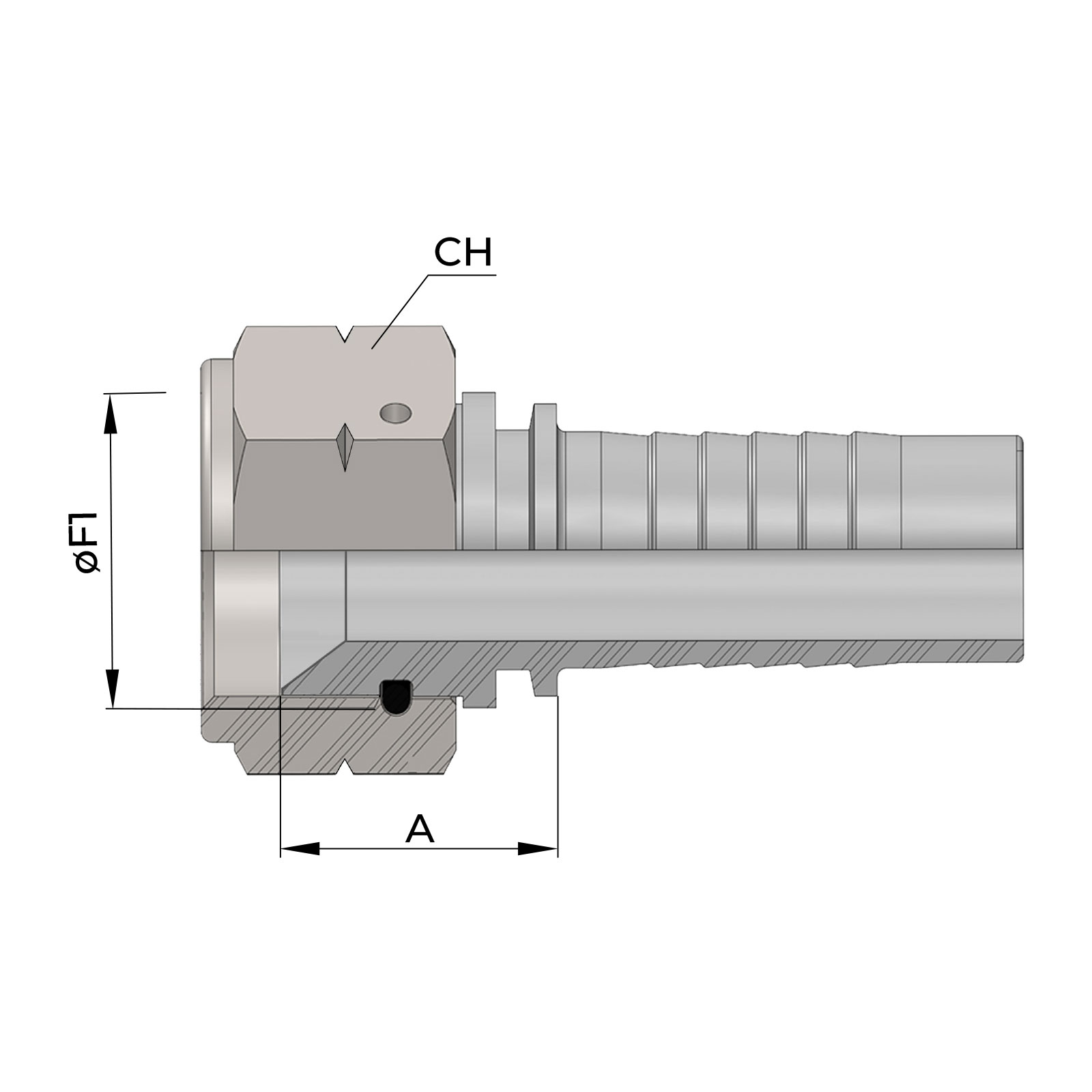

| Part Number | Thread | Hose ID | Hose ID | CH | cut-off=A |
|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | |
| FDJ0716316316 | 7/16"-20 | 3/16" | 4,8 | 17 | 17 |
| FDJ0716014316 | 7/16"-20 | 1/4" | 6,4 | 17 | 17 |
| FDJ0012316316 | 1/2"-20 | 3/16" | 4,8 | 19 | 17 |
| FDJ0012014316 | 1/2"-20 | 1/4" | 6,4 | 19 | 17 |
| FDJ0012516316 | 1/2"-20 | 5/16" | 8,0 | 19 | 17 |
| FDJ0012038316 | 1/2"-20 | 3/8" | 9,5 | 19 | 17 |
| FDJ0916014316 | 9/16"-18 | 1/4" | 6,4 | 19 | 17 |
| FDJ0916516316 | 9/16"-18 | 5/16" | 8,0 | 19 | 17 |
| FDJ0916038316 | 9/16"-18 | 3/8" | 9,5 | 19 | 19 |
| FDJ0034014316 | 3/4"-16 | 1/4" | 6,4 | 24 | 19 |
| FDJ0034038316 | 3/4"-16 | 3/8" | 9,5 | 24 | 19 |
| FDJ0034012316 | 3/4"-16 | 1/2" | 12,7 | 24 | 19 |
| FDJ0078038316 | 7/8"-14 | 3/8" | 9,5 | 27 | 20 |
| FDJ0078012316 | 7/8"-14 | 1/2" | 12,7 | 27 | 20 |
| FDJ0078058316 | 7/8"-14 | 5/8" | 16,0 | 27 | 21 |
| FDJ1116012316 | 1.1/16"-12 | 1/2" | 12,7 | 32 | 24 |
| FDJ1116058316 | 1.1/16"-12 | 5/8" | 16,0 | 32 | 24 |
| FDJ1116034316 | 1.1/16"-12 | 3/4" | 19,0 | 32 | 24 |
| FDJ1516034316 | 1.5/16"-12 | 3/4" | 19,0 | 38 | 27 |
| FDJ1516001316 | 1.5/16"-12 | 1" | 25,4 | 38 | 26 |
| FDJ0158001316 | 1.5/8"-12 | 1" | 25,4 | 50 | 28 |
| FDJ0158114316 | 1.5/8"-12 | 1.1/4" | 31,8 | 50 | 30 |
| FDJ0178114316 | 1.7/8"-12 | 1.1/4" | 31,8 | 55 | 31 |
| FDJ0178112316 | 1.7/8"-12 | 1.1/2" | 38,1 | 55 | 31 |
| FDJ0212002316 | 2.1/2"-12 | 2" | 50,8 | 70 | 31 |
