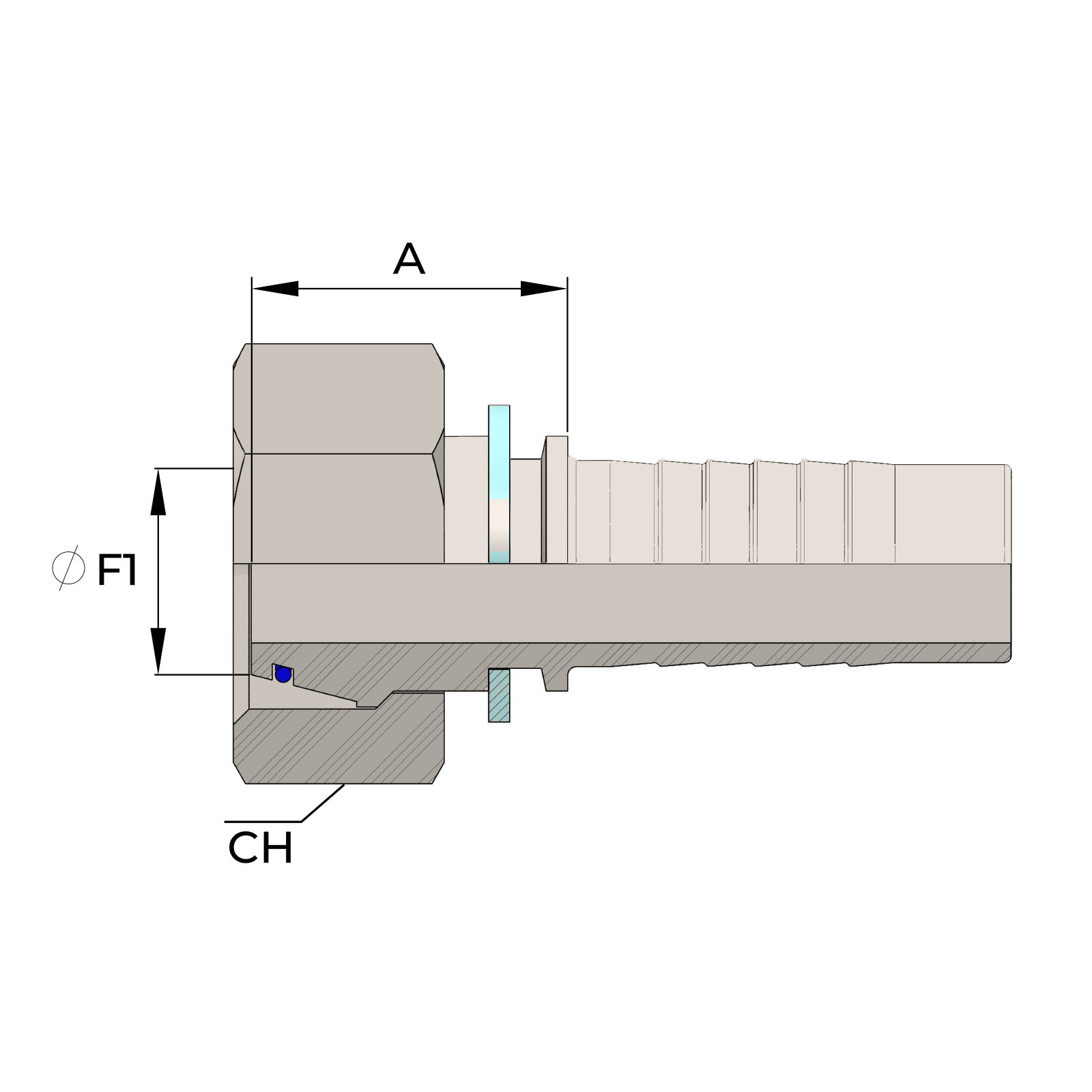

| Part Number | Thread | DIN24° | Hose ID | HoseID | CH | cut-off=A |
|---|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | ||
| FED06L316316 | 12x1.5 | 6L | 3/16" | 4,8 | 14 | 23 |
| FED06L014316 | 12x1.5 | 6L | 1/4" | 6,4 | 14 | 24 |
| FED08L316316 | 14x1.5 | 8L | 3/16" | 4,8 | 17 | 25 |
| FED08L014316 | 14x1.5 | 8L | 1/4" | 6,4 | 17 | 25 |
| FED08L516316 | 14x1.5 | 8L | 5/16" | 8,0 | 17 | 25 |
| FED08L038316 | 14x1.5 | 8L | 3/8" | 9,5 | 17 | 25 |
| FED10L014316 | 16x1.5 | 10L | 1/4" | 6,4 | 19 | 25 |
| FED10L516316 | 16x1.5 | 10L | 5/16" | 8,0 | 19 | 25 |
| FED10L038316 | 16x1.5 | 10L | 3/8" | 9,5 | 19 | 25 |
| FED12L014316 | 18x1.5 | 12L | 1/4" | 6,4 | 22 | 26 |
| FED12L516316 | 18x1.5 | 12L | 5/16" | 8,0 | 22 | 26 |
| FED12L038316 | 18x1.5 | 12L | 3/8" | 9,5 | 22 | 26 |
| FED12L012316 | 18x1.5 | 12L | 1/2" | 12,7 | 22 | 27 |
| FED15L516316 | 22x1.5 | 15L | 5/16" | 8,0 | 27 | 27 |
| FED15L038316 | 22x1.5 | 15L | 3/8" | 9,5 | 27 | 27 |
| FED15L012316 | 22x1.5 | 15L | 1/2" | 12,7 | 27 | 29 |
| FED18L012316 | 26x1.5 | 18L | 1/2" | 12,7 | 32 | 29 |
| FED18L058316 | 26x1.5 | 18L | 5/8" | 16,0 | 32 | 29 |
| FED18L034316 | 26x1.5 | 18L | 3/4" | 19,0 | 32 | 29 |
| FED22L012316 | 30x2 | 22L | 1/2" | 12,7 | 36 | 30 |
| FED22L058316 | 30x2 | 22L | 5/8" | 16,0 | 36 | 30 |
| FED22L034316 | 30x2 | 22L | 3/4" | 19,0 | 36 | 30 |
| FED28L058316 | 36x2 | 28L | 5/8" | 16,0 | 41 | 31 |
| FED28L034316 | 36x2 | 28L | 3/4" | 19,0 | 41 | 31 |
| FED28L001316 | 36x2 | 28L | 1" | 25,4 | 41 | 31 |
| FED35L114316 | 45x2 | 35L | 1.1/4" | 31,8 | 50 | 40 |
| FED42L112316 | 52x2 | 42L | 1.1/2" | 38,1 | 60 | 41 |
