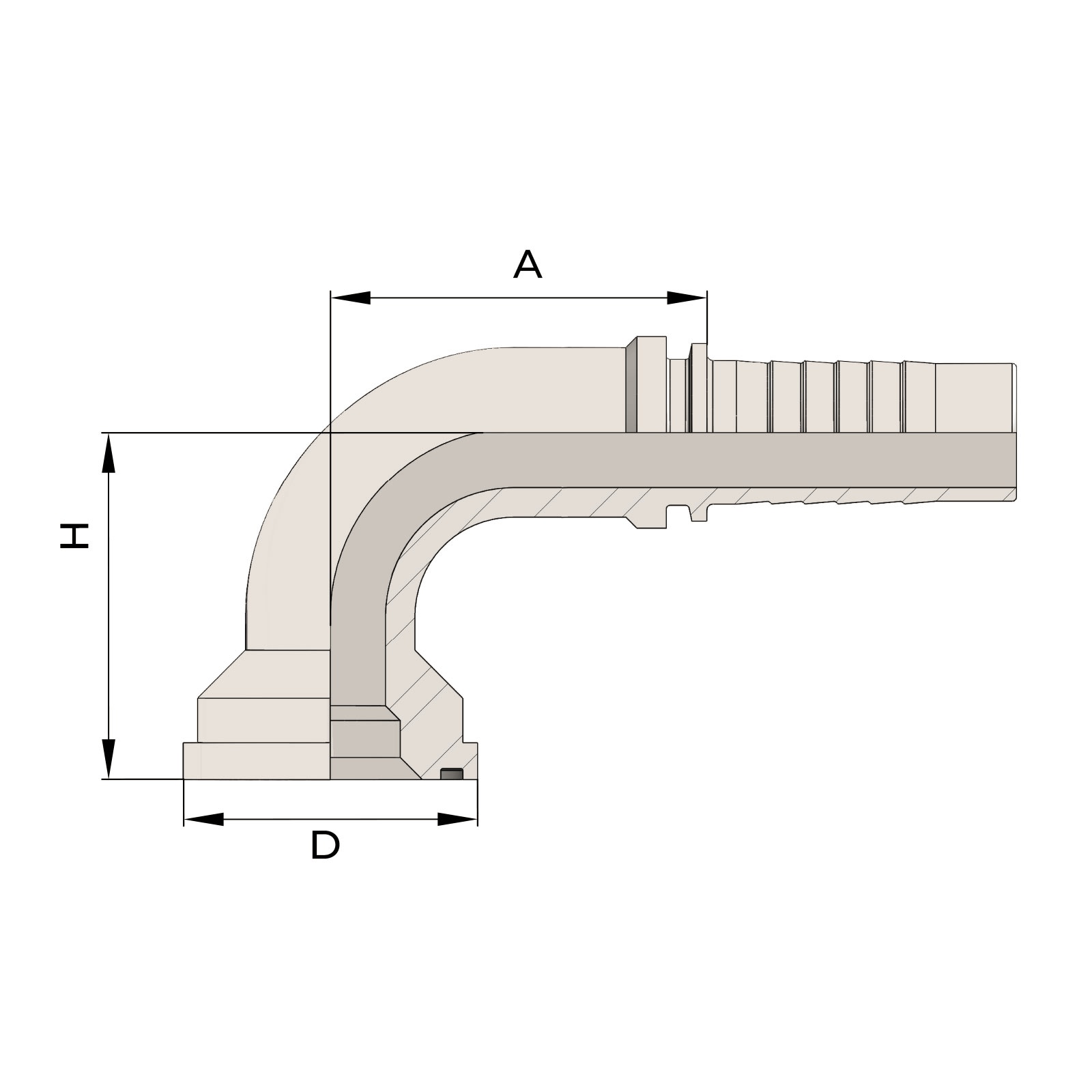

| Part Number | FLANGIA | Hose ID | FLANGIA=D | H | cut-off=A | |
|---|---|---|---|---|---|---|
| size | size | mm | mm | mm | mm | |
| F93012012316 | 1/2'' | 1/2" | 12,7 | 30.2 | 44 | 41 |
| F93034012316 | 3/4" | 1/2'' | 12,7 | 38,1 | 44 | 51 |
| F93034034316 | 3/4" | 3/4" | 19,0 | 38,1 | 51 | 51 |
| F93001034316 | 1" | 3/4" | 19,0 | 44,5 | 54 | 51 |
| F93001001316 | 1" | 1" | 25,4 | 44,5 | 62 | 58 |
| F93114001316 | 1.1/4" | 1" | 25,4 | 50,8 | 70 | 58 |
| F93114114316 | 1.1/4" | 1.1/4" | 31,8 | 50,8 | 75 | 77 |
| F93112114316 | 1.1/2" | 1.1/4" | 31,8 | 60,4 | 75 | 77 |
| F93112112316 | 1.1/2" | 1.1/2" | 38,1 | 60,4 | 107 | 95 |
| F93002112316 | 2" | 1.1/2" | 38,1 | 71,4 | 107 | 95 |
| F93002002316 | 2" | 2" | 50,8 | 71,4 | 125 | 136 |
| F93212002316 | 2.1/2" | 2" | 50,8 | 84,1 | 128 | 136 |
| F93212212316* | 2.1/2" | 2.1/2" | 63,0 | 84,1 | ||
| F93003003316* | 3" | 3" | 76,0 | 101,6 |
