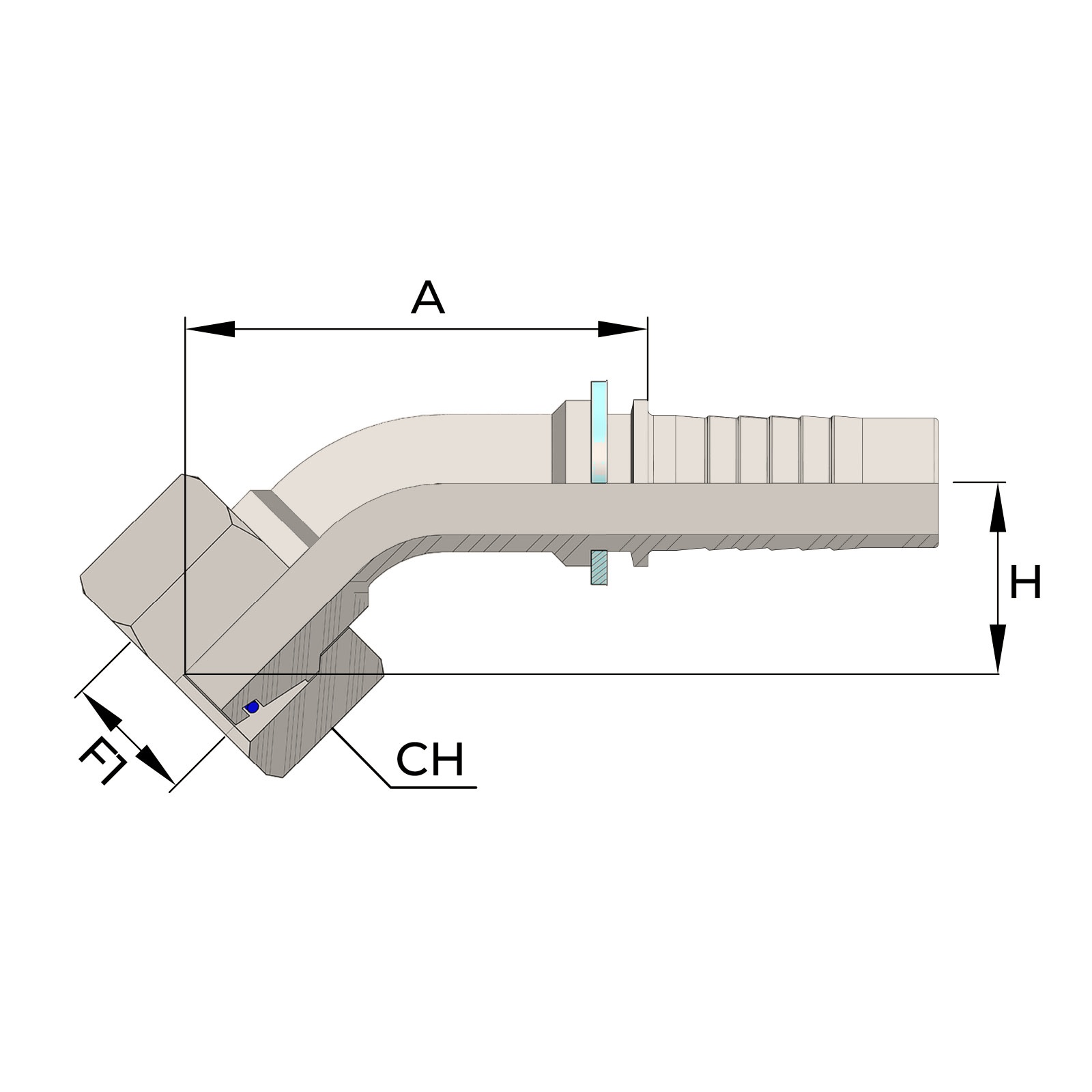

| Part Number | Thread | DIN24° | Hose ID | HoseID | CH | H | cut-off=A |
|---|---|---|---|---|---|---|---|
| F1 | size | mm | mm | mm | mm | ||
| FE406L316316 | 12x1.5 | 6L | 3/16" | 4,8 | 14 | 18 | 42 |
| FE406L014316 | 12x1.5 | 6L | 1/4" | 6,4 | 14 | 18 | 42 |
| FE408L316316 | 14x1.5 | 8L | 3/16" | 4,8 | 17 | 19 | 42 |
| FE408L014316 | 14x1.5 | 8L | 1/4" | 6,4 | 17 | 19 | 42 |
| FE408L516316 | 14x1.5 | 8L | 5/16" | 8,0 | 17 | 19 | 45 |
| FE408L038316 | 14x1.5 | 8L | 3/8" | 9,5 | 17 | 19 | 48 |
| FE410L014316 | 16x1.5 | 10L | 1/4" | 6,4 | 19 | 20 | 45 |
| FE410L516316 | 16x1.5 | 10L | 5/16" | 8,0 | 19 | 20 | 45 |
| FE410L038316 | 16x1.5 | 10L | 3/8" | 9,5 | 19 | 20 | 48 |
| FE412L014316 | 18x1.5 | 12L | 1/4" | 6,4 | 22 | 22 | 45 |
| FE412L516316 | 18x1.5 | 12L | 5/16" | 8,0 | 22 | 22 | 45 |
| FE412L038316 | 18x1.5 | 12L | 3/8" | 9,5 | 22 | 22 | 48 |
| FE412L012316 | 18x1.5 | 12L | 1/2" | 12,7 | 22 | 22 | 54 |
| FE415L516316 | 22x1.5 | 15L | 5/16" | 8,0 | 27 | 23 | 45 |
| FE415L038316 | 22x1.5 | 15L | 3/8" | 9,5 | 27 | 23 | 48 |
| FE415L012316 | 22x1.5 | 15L | 1/2" | 12,7 | 27 | 23 | 54 |
| FE418L012316 | 26x1.5 | 18L | 1/2" | 12,7 | 32 | 23 | 54 |
| FE418L058316 | 26x1.5 | 18L | 5/8" | 16,0 | 32 | 25 | 55 |
| FE418L034316 | 26x1.5 | 18L | 3/4" | 19,0 | 32 | 26 | 71 |
| FE422L012316 | 30x2 | 22L | 1/2" | 12,7 | 36 | 23 | 55 |
| FE422L058316 | 30x2 | 22L | 5/8" | 16,0 | 36 | 25 | 55 |
| FE422L034316 | 30x2 | 22L | 3/4" | 19,0 | 36 | 26 | 71 |
| FE428L058316 | 36x2 | 28L | 5/8" | 16,0 | 41 | 26 | 55 |
| FE428L034316 | 36x2 | 28L | 3/4" | 19,0 | 41 | 28 | 71 |
| FE428L001316 | 36x2 | 28L | 1" | 25,4 | 41 | 30 | 88 |
| FE435L114316 | 45x2 | 35L | 1.1/4" | 31,8 | 50 | 40 | 110 |
| FE442L112316 | 52x2 | 42L | 1.1/2" | 38,1 | 60 | 50 | 144 |
